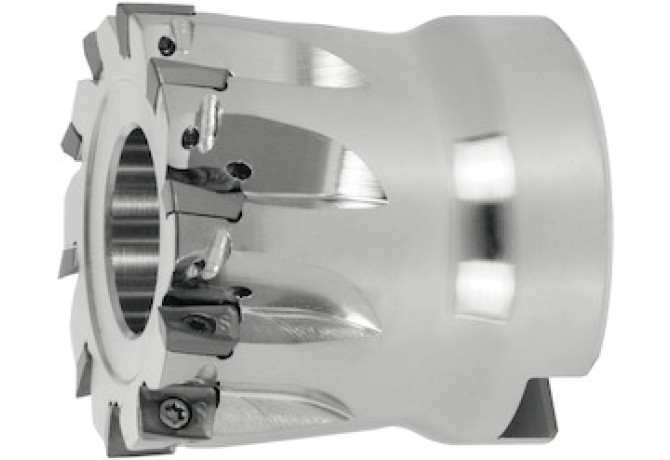

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 227115 50/12

227115 50/12

227115 50/12 227115 50/12 227115 50/12

227115 50/12

Hoffmann Group
Артикул: 227115 50/12
В наличии
В корзину
Описание
Характеристики
BD Body diameter
49 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6 mm
CICT Cutting item count
12
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHUB Hub diameter
40 mm
DIN
FDA02202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
12
FamilyProducts
KYOCERA 90° face mill MECX
GAMF Rake angle radial
16.3 Degree
GAMP Rake angle axial
-8.3 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202210
Name Identifying order number
227115 50/12
OAL Overall length
40 mm
Working process
No working processes available
WT Weight of item
0.33 kg
ZEFF Face effective cutting edge count
12
ZEFP Peripheral effective cutting edge count
12
