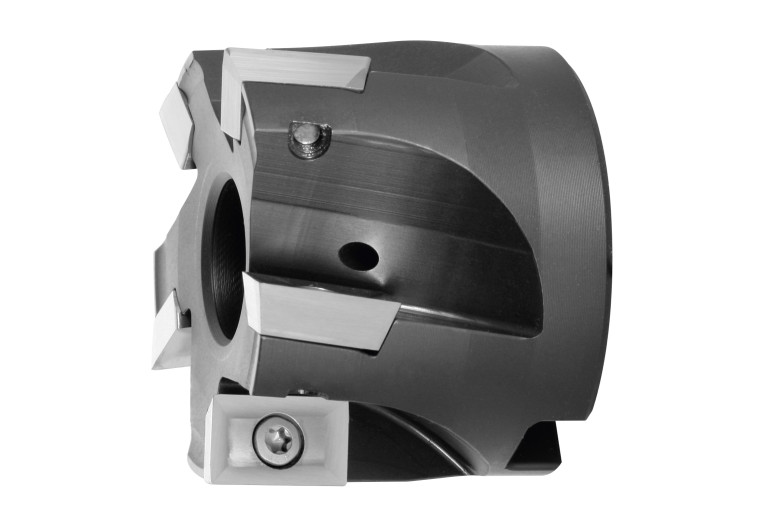

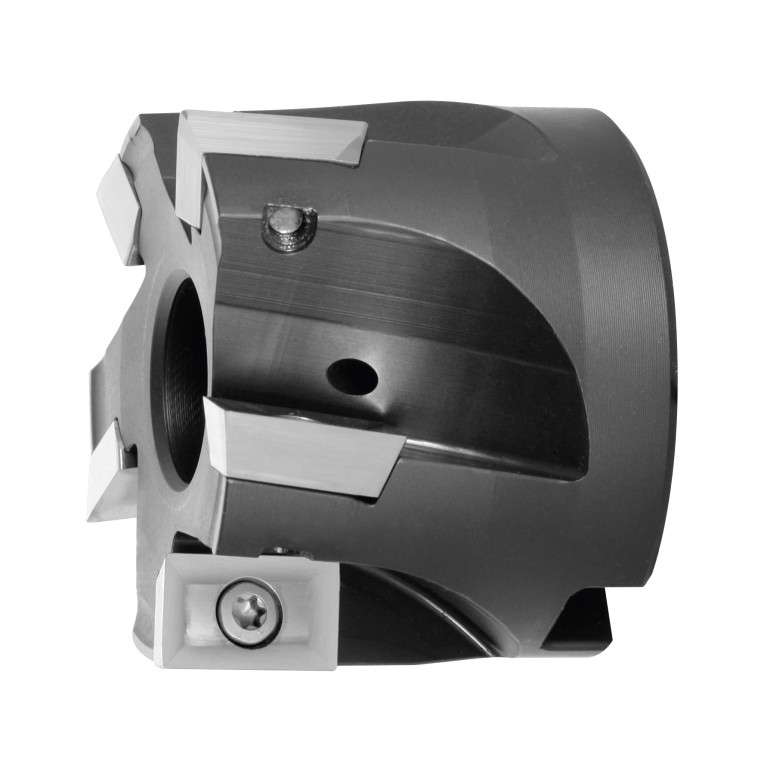

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 226515 40/5

226515 40/5

Артикул: 226515 40/5

В наличии

В корзину

Описание

Характеристики

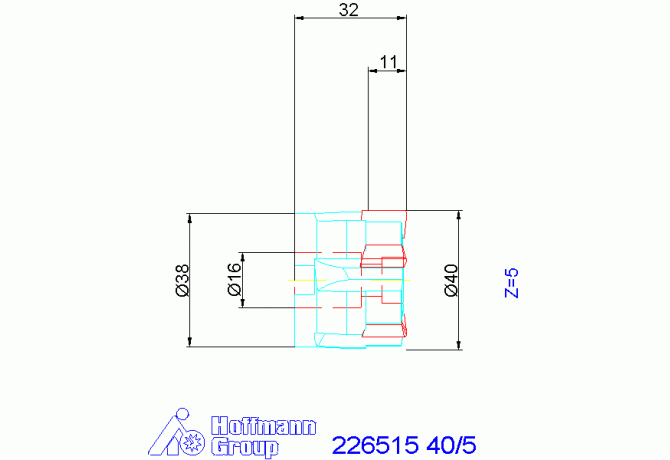

BD Body diameter

39 mm

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

11 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

38 mm

DIN

FDA01602210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° end mill 7690VA12

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01602210

Name Identifying order number

226515 40/5

OAL Overall length

32 mm

Working process

No working processes available

WT Weight of item

0.158 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
