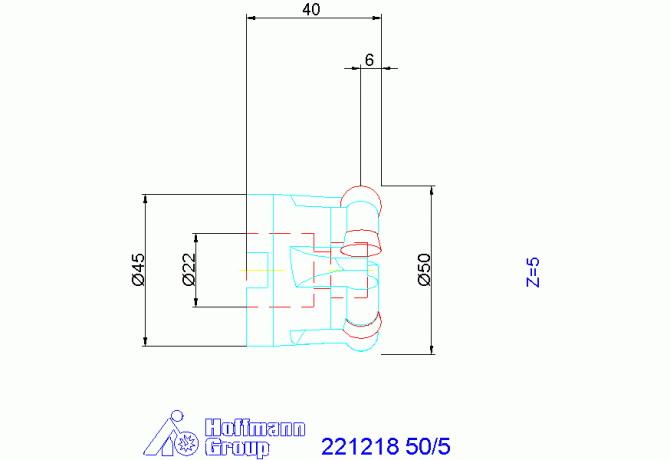

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 221218 50/5

221218 50/5

Артикул: 221218 50/5

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

BD Body diameter

43.5 mm

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

6 mm

CICT Cutting item count

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

45 mm

DIN

FDA02200200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Contour milling cutter 7710VR

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200200

Name Identifying order number

221218 50/5

OAL Overall length

40 mm

Working process

No working processes available

WT Weight of item

0.26 kg

ZEFP Peripheral effective cutting edge count
