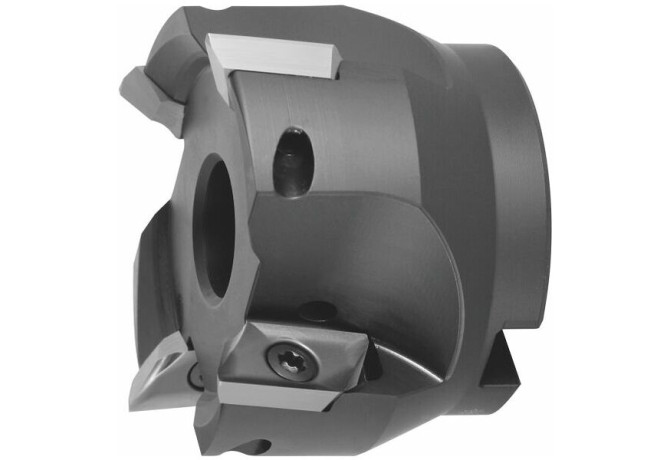

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 220803 42/3

220803 42/3

Артикул: 220803 42/3

В наличии

В корзину

Описание

Характеристики

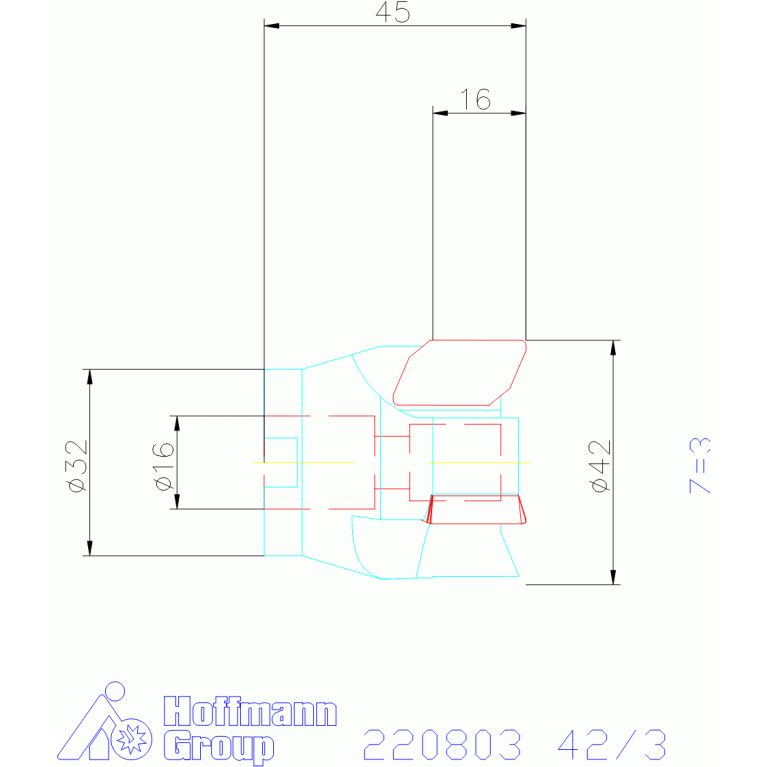

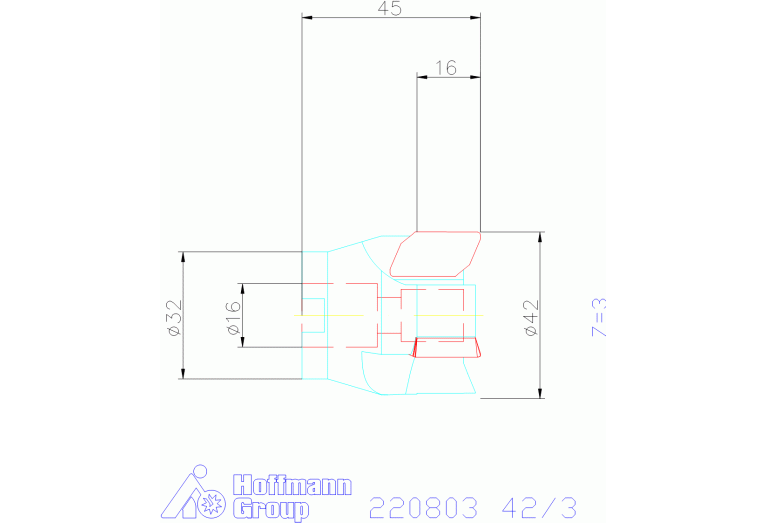

BD Body diameter

40 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

16 mm

CICT Cutting item count

COMPC Company code

HOG - Hoffmann Group

DC Cutting diameter

42 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DHUB Hub diameter

32 mm

DIN

FDA01600200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

End mill 90° 5720VZ16

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

4.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA01600200

Name Identifying order number

220803 42/3

OAL Overall length

45 mm

Working process

No working processes available

WT Weight of item

0.19 kg

ZEFP Peripheral effective cutting edge count
