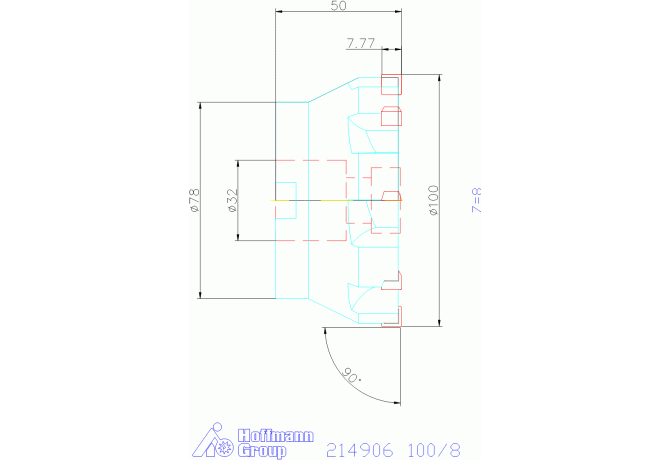

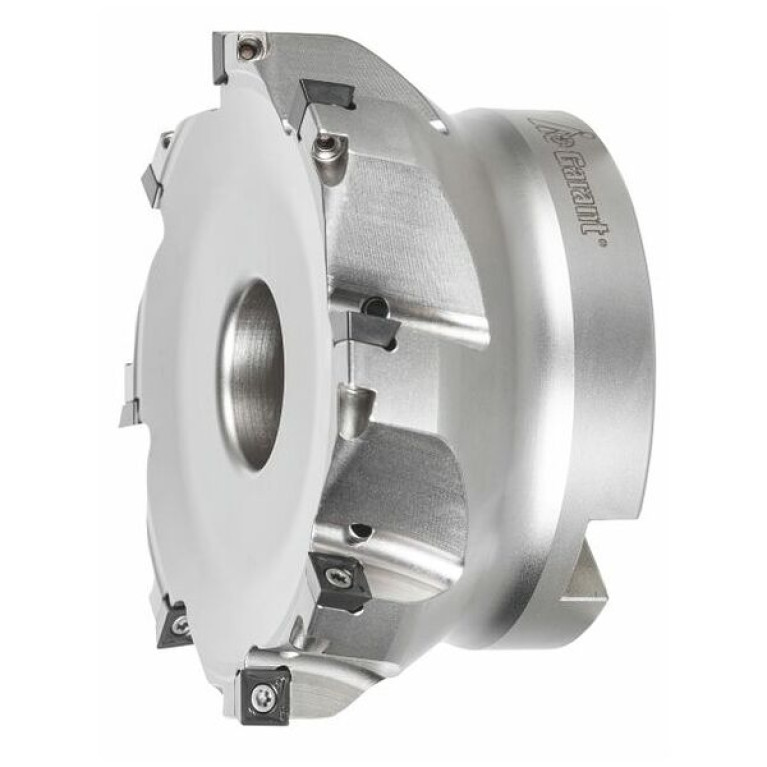

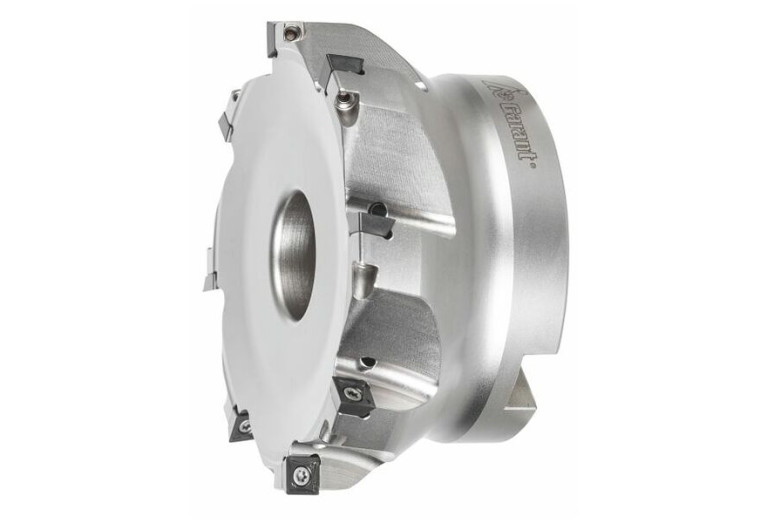

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 214906 100/8

214906 100/8

214906 100/8 214906 100/8 214906 100/8

214906 100/8

Hoffmann Group
Артикул: 214906 100/8
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
17 Degree
B3A Inscribed circle diameter Pos. A
8 mm
BD Body diameter
97.5 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
3.64 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7.77 mm
CICT Cutting item count
8
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
54.08 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHUB Hub diameter
78 mm
DIN
FDA03202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
GARANT Indexable face mill, 90° wide pitch
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
3.02 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202210
Name Identifying order number
214906 100/8
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.72 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
