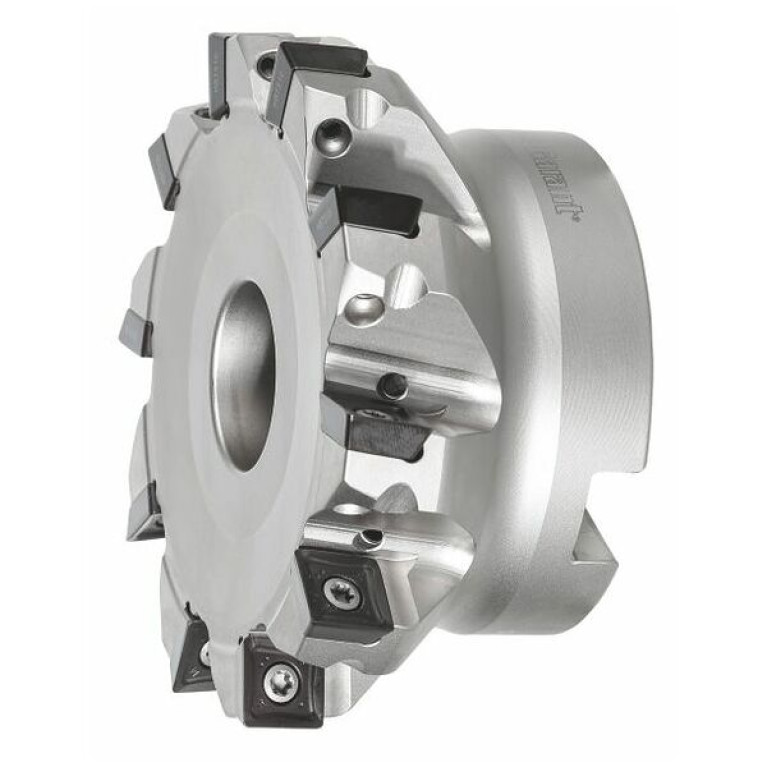

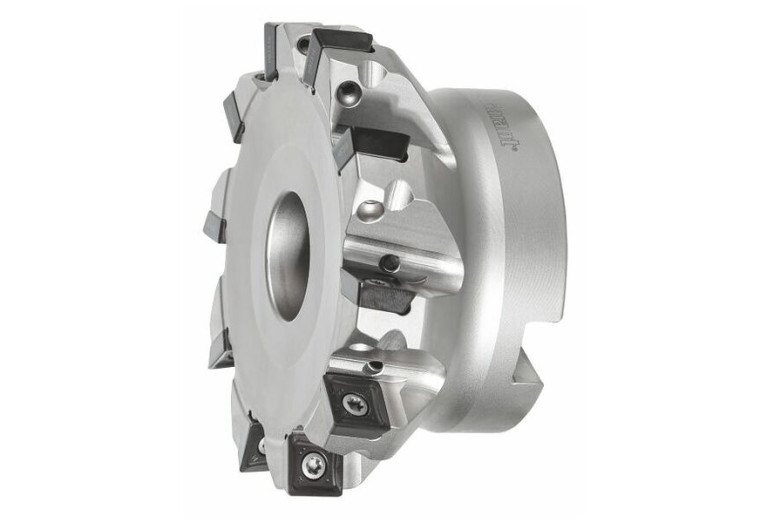

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 214857 100/10

214857 100/10

214857 100/10 214857 100/10 214857 100/10

214857 100/10

Hoffmann Group
Артикул: 214857 100/10
В наличии
В корзину
Описание
Характеристики

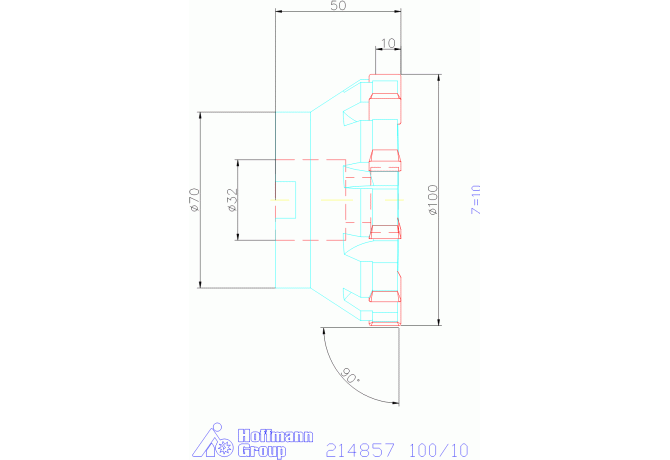

BD Body diameter
70 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
10 mm
CICT Cutting item count
10
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHUB Hub diameter
70 mm
DIN
FDA03202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
GARANT 90° HSI indexable face mill close pitch
GAMF Rake angle radial
8 Degree
GAMP Rake angle axial
-8 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202210
Name Identifying order number
214857 100/10
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.48 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
