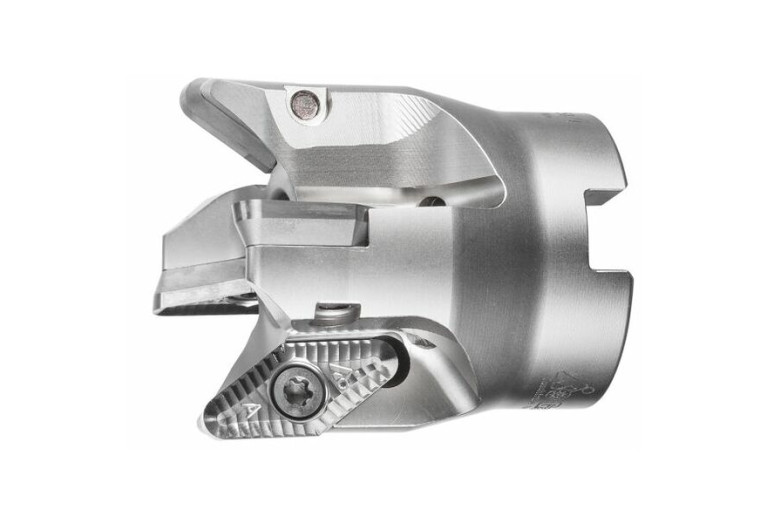

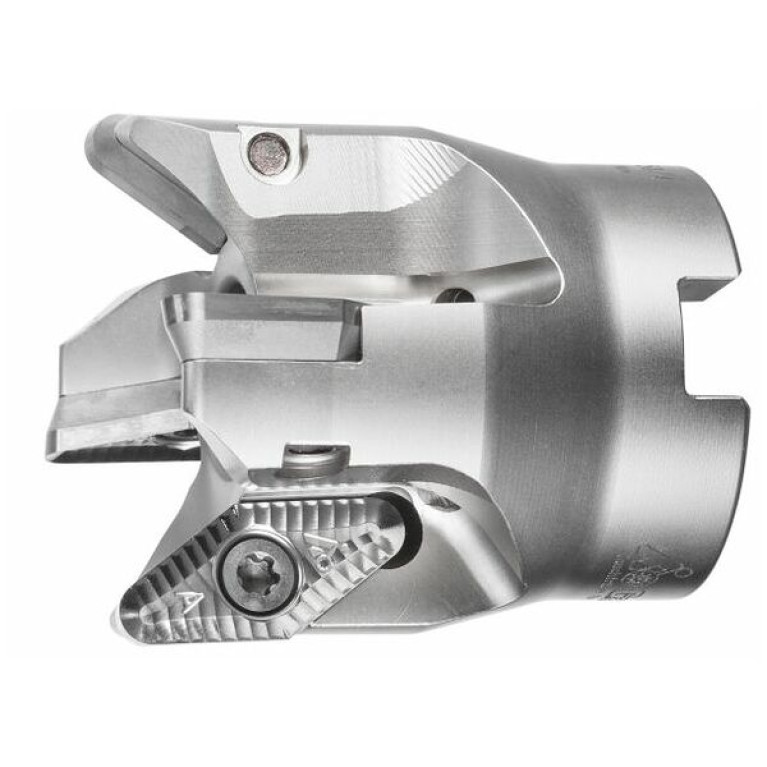

Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 211807 50/4

211807 50/4

211807 50/4 211807 50/4 211807 50/4

211807 50/4

Hoffmann Group
Артикул: 211807 50/4
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
35 Degree
A2A Clearance angle major Pos. A
7 Degree
BD Body diameter
46.3 mm
BLDA Tool style code Position A
3
CCONMS Connection count machine side
1
CDX Cutting depth maximum
15.65 mm
CICT Cutting item count
4
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
50 mm
DCCB Counterbore diameter connection bore
17 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DHUB Hub diameter
40 mm
DIN
FDA02200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
GARANT Plunge milling cutter 93°
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
93 Degree
LCCB Counterbore depth connection bore
10.4 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200200
Name Identifying order number
211807 50/4
OAL Overall length
55 mm
Working process
No working processes available
WT Weight of item
0.31 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
