Главная Каталог продукции Toolunited 14 308-02 - Shoulder milling cutter 12397005400

12397005400

Артикул: 12397005400

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

WI - Widia

CXSC Coolant exit style code

0 - Without coolant exit

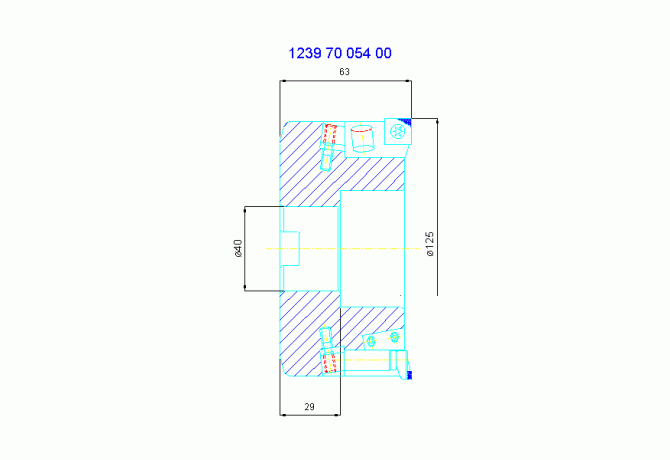

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

Delivery state

KA - Unknown

DIN

FKA04000100

F23 Number of mounting layers

FamilyProducts

M 700 Square shoulder mill

HAND Cutting direction

R - Right

ID Technical product number

12397005400

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

WI-123024048

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FKA04000100

Name Identifying order number

12397005400

OAL Overall length

63 mm

Working process

FEC - Square shoulder milling
