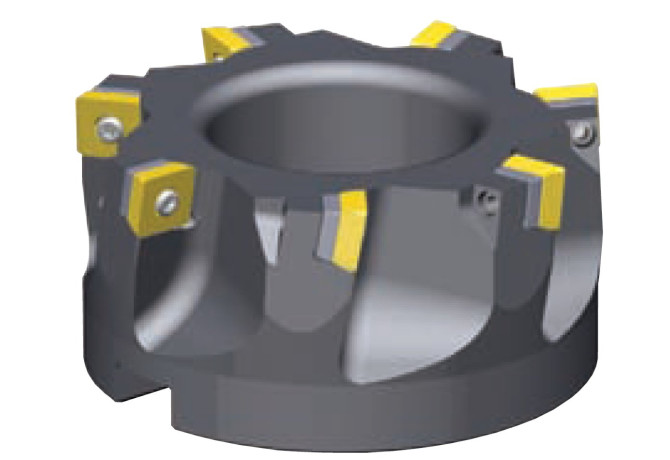

100B08RS90SD12DG
100B08RS90SD12DG
Артикул:
1926840
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
15 Degree
B1A Cutting edge length Pos. A
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
4.76 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
9.2 mm
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit

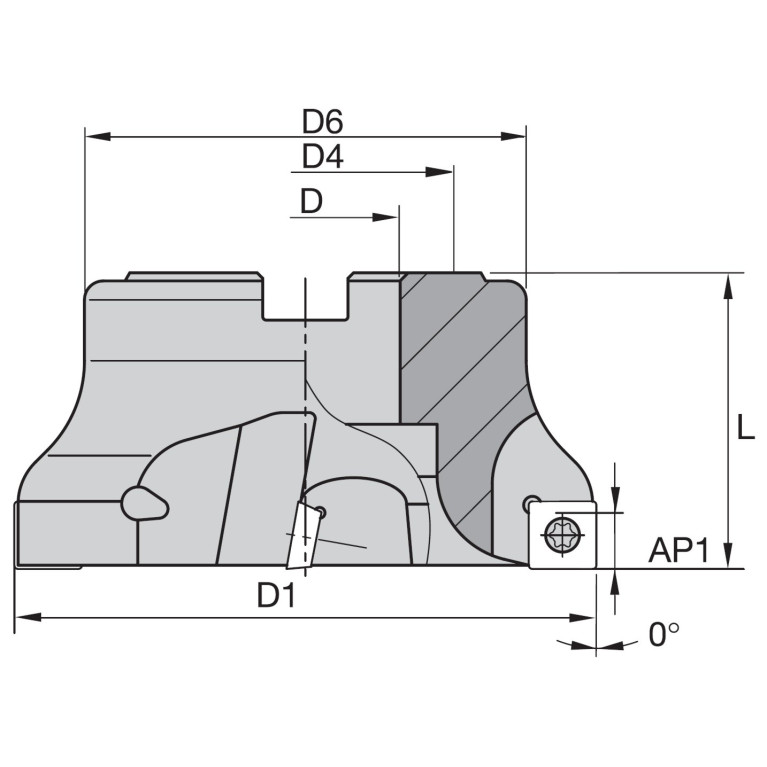

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/4/2011
DHUB Hub diameter
80 mm
DIN
FDA03200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
90° Lead Mill - KSSM, fine pitch, metric
HAND Cutting direction
R - Right
ID Technical product number
1926840
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03200200
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
100B08RS90SD12DG
OAL Overall length
50 mm
RPMX Rotational speed maximum
14600 1/min
Working process
No working processes available
WT Weight of item
1.7 kg
ZEFP Peripheral effective cutting edge count
8
