Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter WSX445-100B05AR

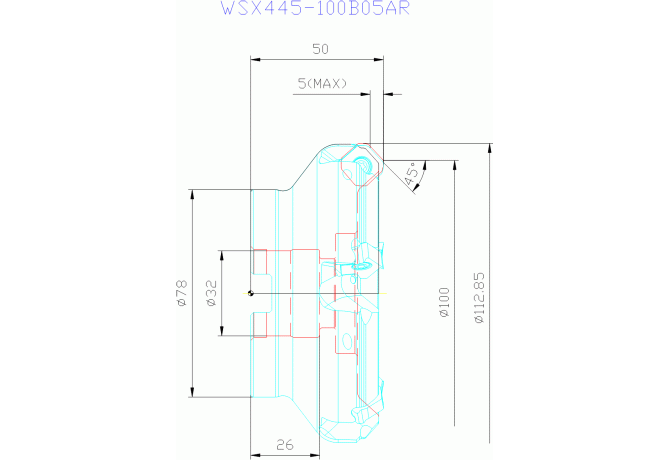

WSX445-100B05AR

WSX445-100B05AR WSX445-100B05AR WSX445-100B05AR WSX445-100B05AR

WSX445-100B05AR

Mitsubishi Materials
Артикул: 834700
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
14 mm
B3A Inscribed circle diameter Pos. A
14 mm
BD Body diameter
78 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
8.4 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
5 mm
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.2 mm
D6A Wiper edge length Pos. A
1.5 mm
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
45 mm
DCX Cutting diameter maximum
112.9 mm
Delivery state valid from
4/1/2022
DIN
FDA03202200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
face mills
GAMF Rake angle radial
-10 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
834700
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LCCB Counterbore depth connection bore
16.3 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
Name Identifying order number
WSX445-100B05AR
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.93 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
