Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter TXP09063R-E

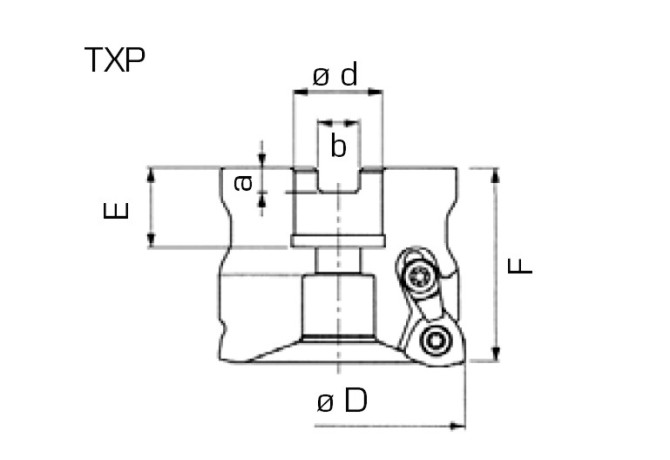

TXP09063R-E

TXP09063R-E TXP09063R-E

TXP09063R-E

Tungaloy
Артикул: 6843678
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A2A Clearance angle major Pos. A
11 Degree
B1A Cutting edge length Pos. A
9 mm
B3A Inscribed circle diameter Pos. A
15 mm
BLDA Tool style code Position A
7
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
7 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
3 mm
CICT Cutting item count
3
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
TT - Tungaloy
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
2.5 mm
DC Cutting diameter
49.4 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
63 mm
Delivery state valid from
4/1/2013
DHUB Hub diameter
59 mm
DIN
FDA02200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
TXP end mill
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
R - Right
ID Technical product number
6843678
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
20 Degree
LCCB Counterbore depth connection bore
20 mm
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200200
Name Identifying order number
TXP09063R-E
OAL Overall length
50 mm
Working process
FPL - Face milling
WT Weight of item
0.6 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
