Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter TXP08066R-E

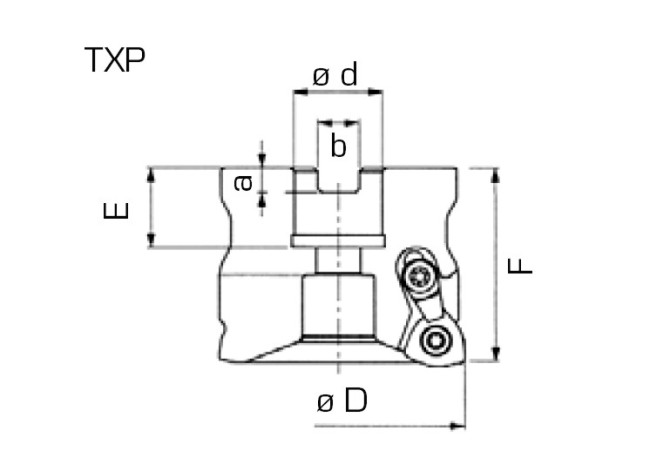

TXP08066R-E

TXP08066R-E

Tungaloy

Артикул: TXP08066R-E

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A2A Clearance angle major Pos. A

11 Degree

AZ Plunge depth maximum

1 mm

B1A Cutting edge length Pos. A

8 mm

B3A Inscribed circle diameter Pos. A

12.87 mm

BLDA Tool style code Position A

7

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

6.35 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

1.5 mm

CICT Cutting item count

4

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.5 mm

DC Cutting diameter

54.6 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

66 mm

Delivery state valid from

4/1/2013

DHUB Hub diameter

63 mm

DIN

FDA02700200

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

4

FamilyProducts

Tungaloy TXP08 endmill

GAMF Rake angle radial

-5 Degree

GAMP Rake angle axial

5 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Form

12

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02700200

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

TXP08066R-E

OAL Overall length

50 mm

RMPX Ramping angle maximum

2.5 Degree

Working process

FPL - Face milling

WT Weight of item

0.8 kg

ZEFF Face effective cutting edge count

4

ZEFP Peripheral effective cutting edge count

4
