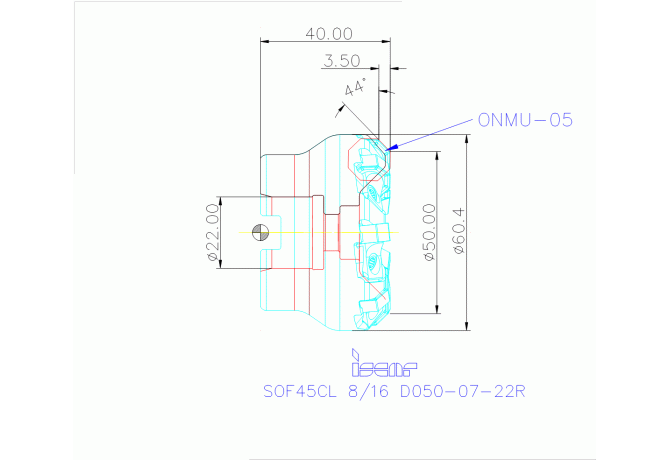

SOF45CL 8/16 D050-07-22R

SOF45CL 8/16 D050-07-22R

Iscar
Артикул: 3105784
В наличии
В корзину
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
47.65 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
60.4 mm
DHUB Hub diameter
48 mm
DIN
FDA02200205
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
45° Extra Fine Pitch Face Mills with Wedge Clamped Inserts, Carrying Square or Octagonal Inserts with 8/16 Cutting Edges
HAND Cutting direction
R - Right
ID Technical product number
3105784
Interface codes
J6 / J61
ISO
FDA02G2200H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
44 Degree
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G2200H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02200205
Name Identifying order number
SOF45CL 8/16 D050-07-22R
OAL Overall length
41.2 mm
RMPX Ramping angle maximum
0 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.47 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
