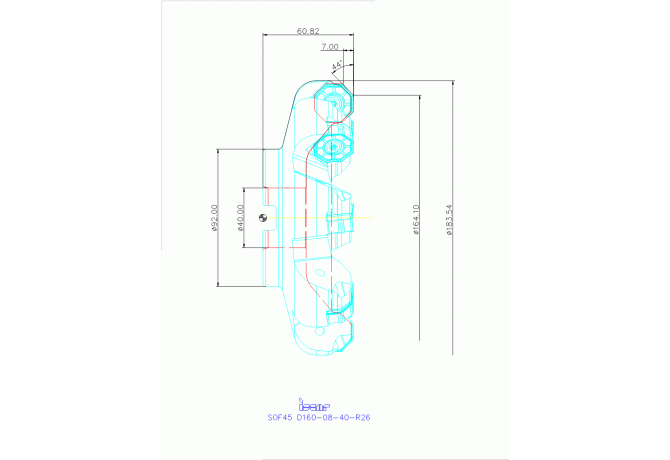

SOF45 D160-08-40-R26

SOF45 D160-08-40-R26

Iscar
Артикул: 3106340
В наличии
В корзину
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
160 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
184.5 mm
DHUB Hub diameter
92 mm
DIN
SPK04000103
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Heavy Duty 45° Face Mills Carrying Square or Octagonal Double-Sided Inserts with 8/16 Cutting Edges
HAND Cutting direction
R - Right
ID Technical product number
3106340
Interface codes
J6 / J61
ISO
SPK01G4000H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
SPK01G4000H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000103
Name Identifying order number
SOF45 D160-08-40-R26
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
4.05 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
