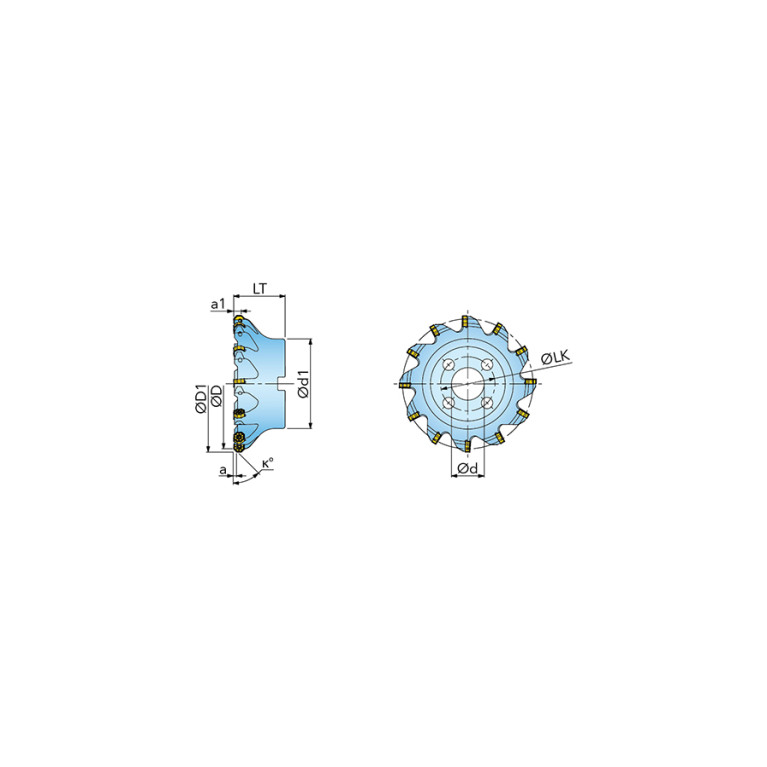

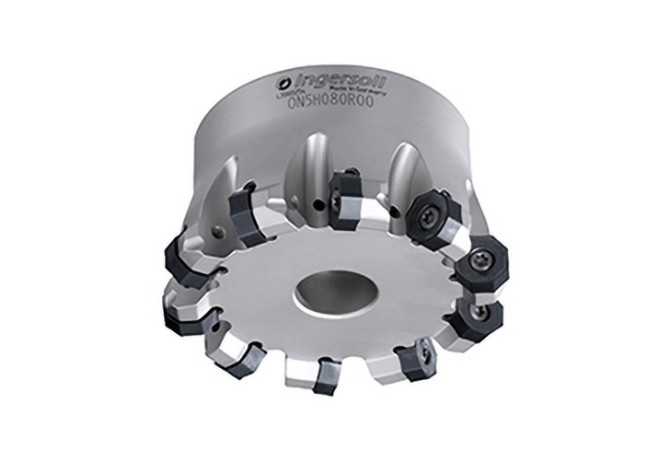

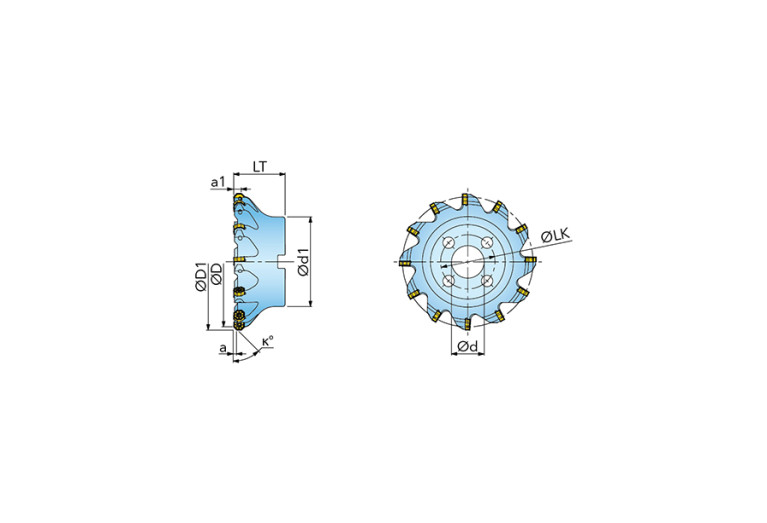

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter ON5H125R00

ON5H125R00

ON5H125R00 ON5H125R00 ON5H125R00 ON5H125R00

ON5H125R00

Ingersoll
Артикул: 3029188
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
3 mm
CICT Cutting item count
16
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
133.3 mm
Delivery state
LL - Stock limited
DHUB Hub diameter
100 mm
DIN
FDA04002210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
16
FamilyProducts
Face Mill ON H
HAND Cutting direction
R - Right
ID Technical product number
3029188
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002210

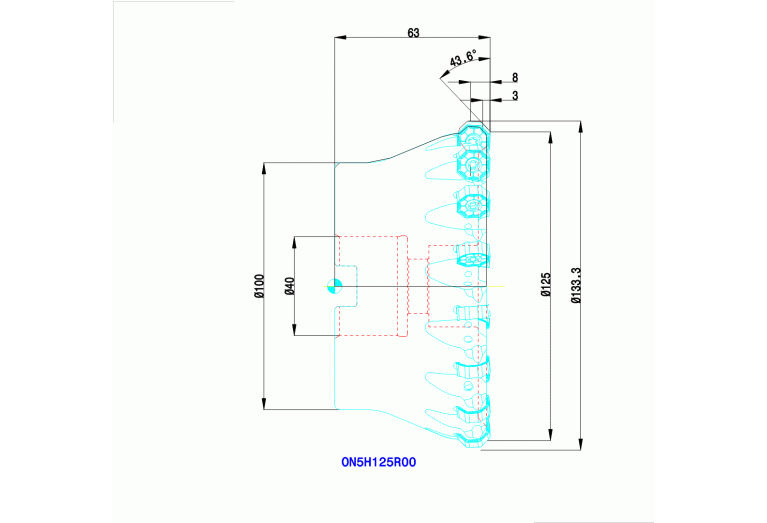

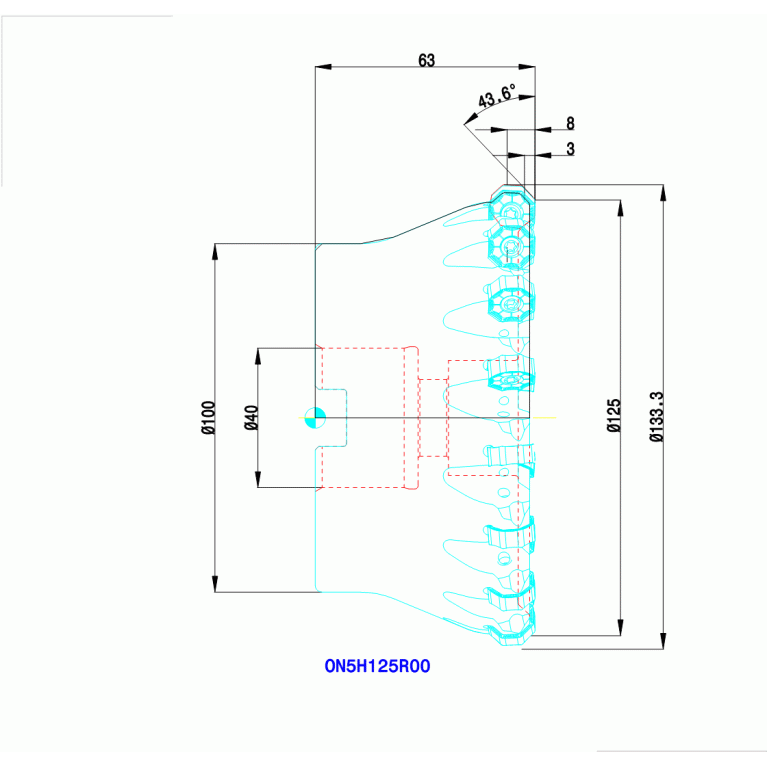

Name Identifying order number
ON5H125R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
3.7 kg
ZEFF Face effective cutting edge count
16
ZEFP Peripheral effective cutting edge count
16
