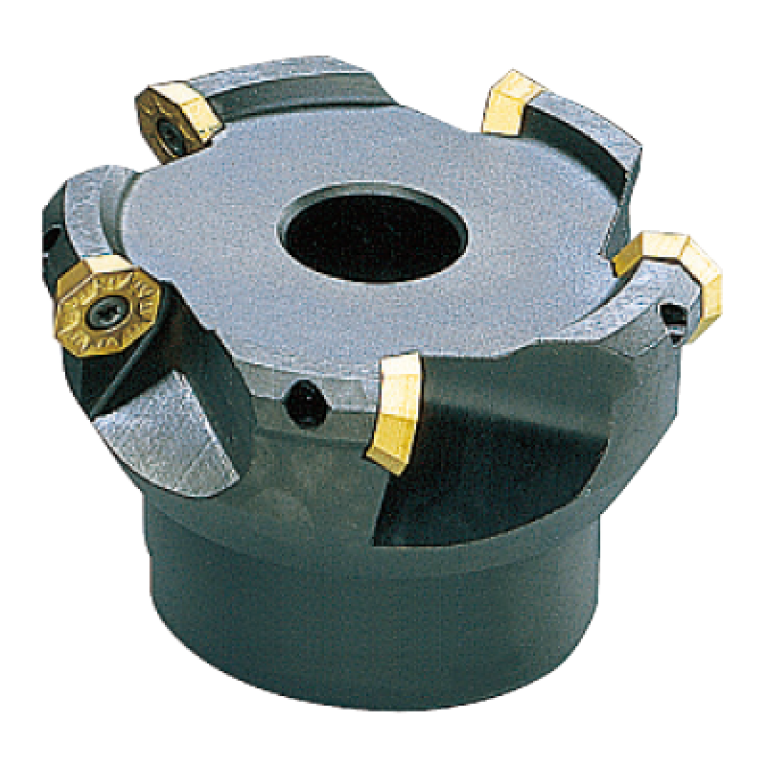

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter OCTACUT1257BR

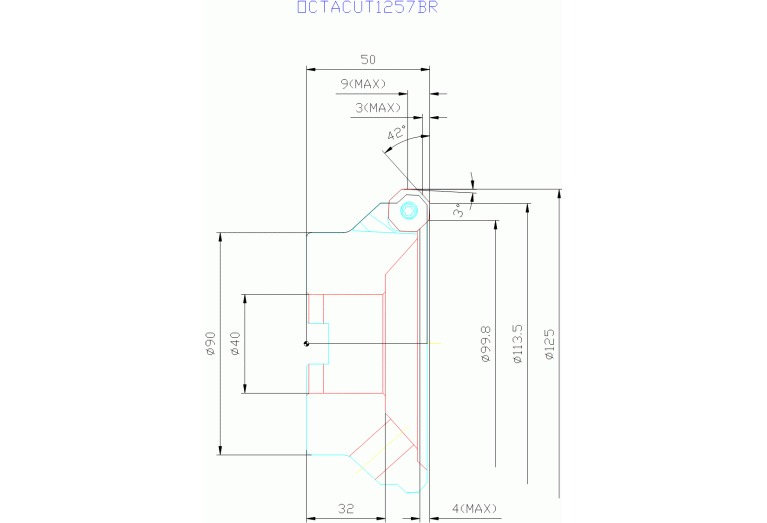

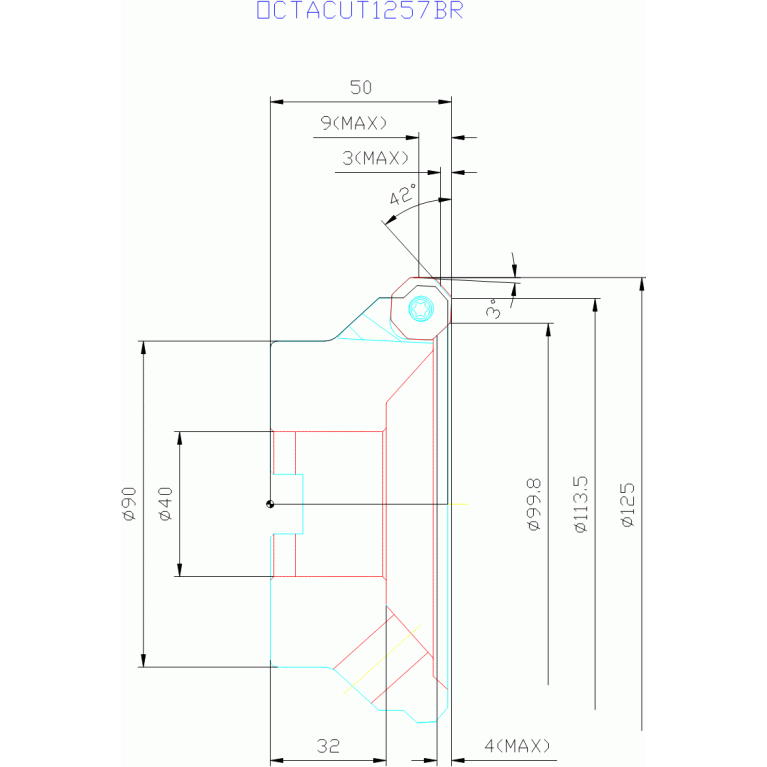

OCTACUT1257BR

Артикул: 10445112

В наличии

В корзину

Описание

Характеристики

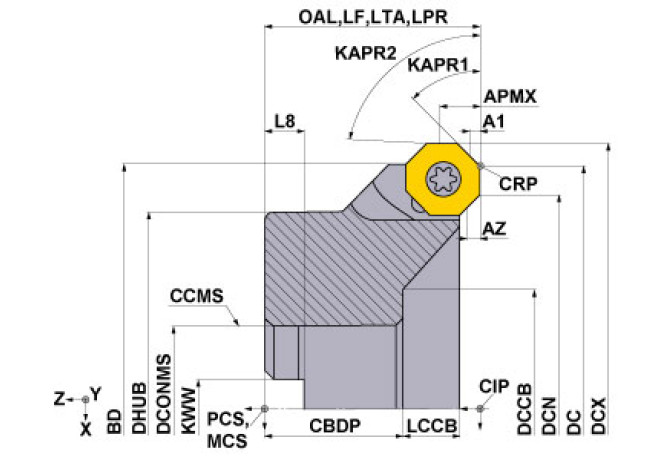

A1A Cutting edge angle major Pos. A

135 Degree

A2A Clearance angle major Pos. A

20 Degree

AZ Plunge depth maximum

4 mm

B1A Cutting edge length Pos. A

7.042 mm

B3A Inscribed circle diameter Pos. A

17 mm

BD Body diameter

80 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

9 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D6A Wiper edge length Pos. A

1.4 mm

DC Cutting diameter

113.5 mm

DCCB Counterbore diameter connection bore

56 mm

DCX Cutting diameter maximum

125 mm

Delivery state valid from

4/1/2022

DIN

FDA04002200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

face mills

GAMF Rake angle radial

-4 Degree

GAMP Rake angle axial

13 Degree

HAND Cutting direction

R - Right

ID Technical product number

10445112

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

42 Degree

LCCB Counterbore depth connection bore

16.96 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002200

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

OCTACUT1257BR

OAL Overall length

50 mm

Working process

No working processes available

WT Weight of item

1.8 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
