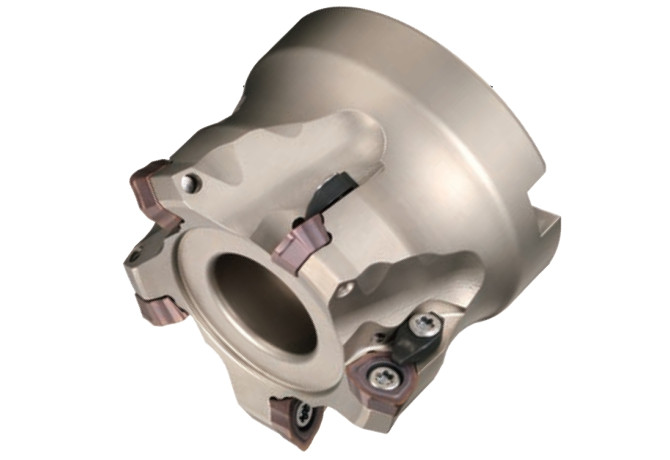

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter MSX14066RS

MSX14066RS

Артикул: MSX14066RS

В наличии

В корзину

Описание

Характеристики

AZ Plunge depth maximum

2.5 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

2.5 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SU - Sumitomo

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

66 mm

DCCB Counterbore diameter connection bore

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/24/2021

DHUB Hub diameter

60 mm

DIN

FDA02700200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Metal Slash high feed end mill

GAMF Rake angle radial

8 Degree

GAMP Rake angle axial

8 Degree

HAND Cutting direction

R - Right

ID Technical product number

MSX14066RS

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

20 Degree

LCCB Counterbore depth connection bore

25 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02700200

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

MSX14066RS

OAL Overall length

63 mm

RMPX Ramping angle maximum

3 Degree

Working process

FPL - Face milling

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
