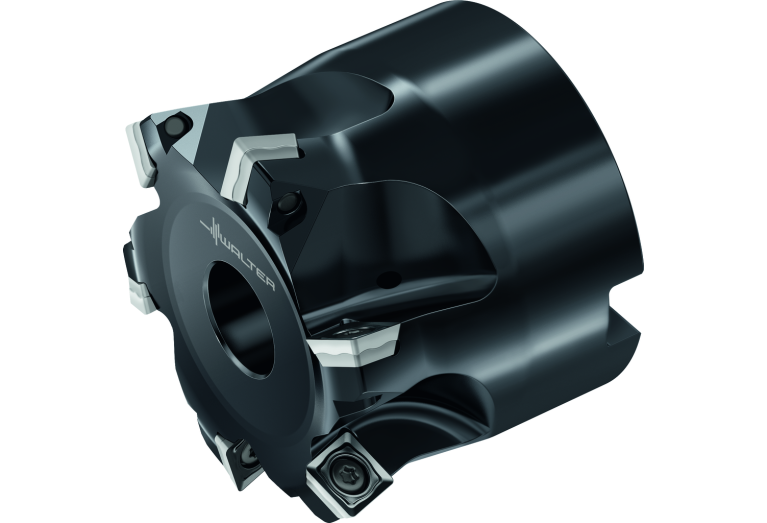

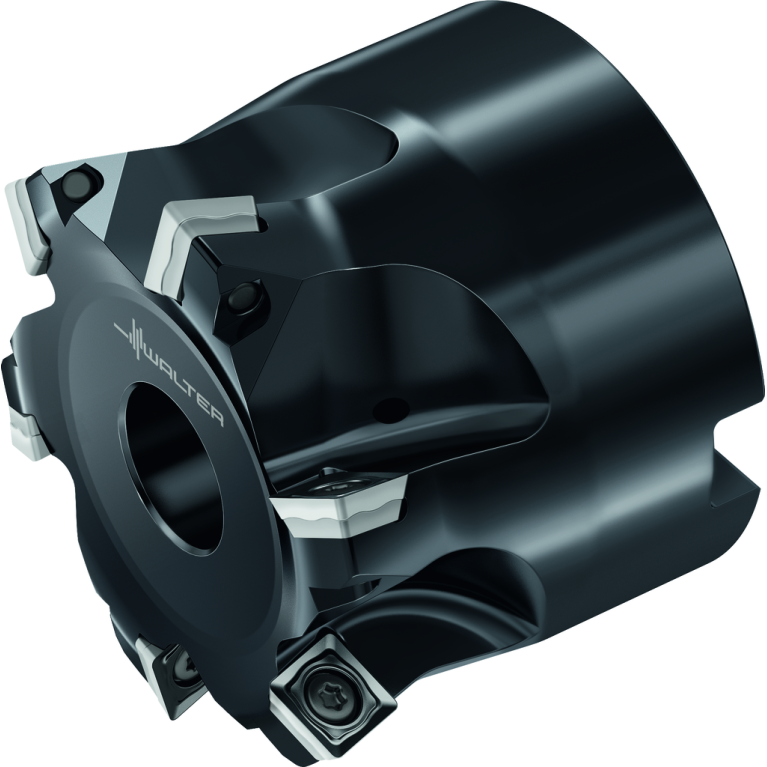

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter M4002.064-B19-05-02

M4002.064-B19-05-02

M4002.064-B19-05-02 M4002.064-B19-05-02 M4002.064-B19-05-02

M4002.064-B19-05-02

Walter
Артикул: 6796960
В наличии
В корзину
Описание
Характеристики

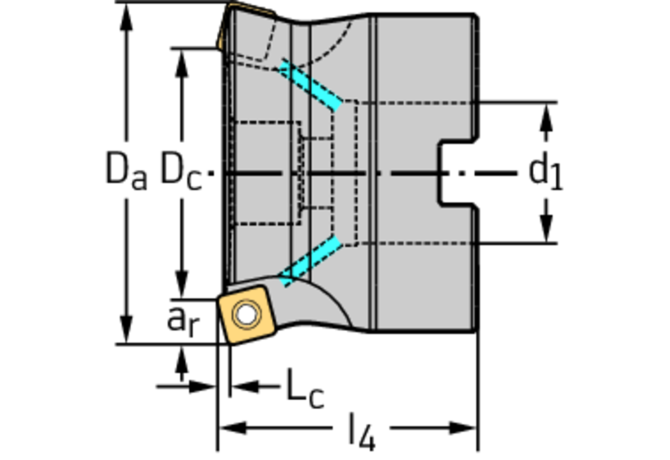

ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.3 mm
BD Body diameter
61.048 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
2 mm
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
17 mm
DC Cutting diameter
40.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
63.5 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
44.45 mm
DIN
FDA07501230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
High-feed milling cutter M4002
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6796960
Interface codes
J6 / J61
ISO
FDA12R7500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
15 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03 ISO
FDA12R7500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA07501230
Name Identifying order number
M4002.064-B19-05-02
OAL Overall length
50 mm
RMPX Ramping angle maximum
1.8 Degree
RPMX Rotational speed maximum
15900 1/min
Working process
FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.592 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
