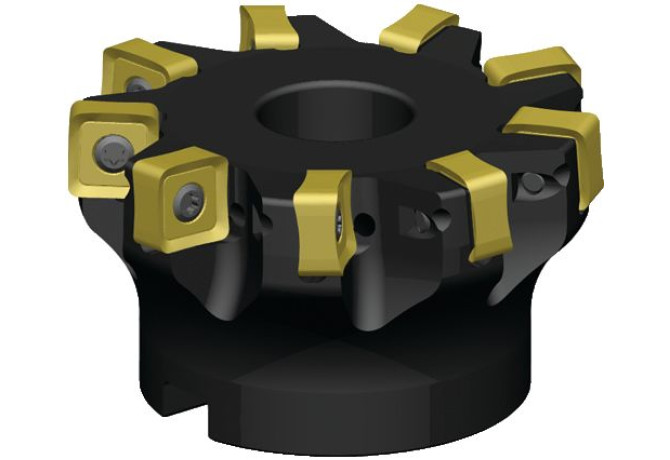

KSSM87D100Z08SN12

Артикул: 5420114

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

13 mm

B2A Insert width Pos. A

13 mm

B3A Inscribed circle diameter Pos. A

13 mm

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

6.35 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

6 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1.6 mm

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

101.15 mm

Delivery state valid from

1/11/2016

DIN

FDA03201210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

KSSM8+ iC 12,7mm Indexable Face Mill

GAMF Rake angle radial

-4 Degree

GAMP Rake angle axial

10 Degree

HAND Cutting direction

R - Right

ID Technical product number

5420114

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

87 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03201210

MILTTY Mill tool type ISO

G - Side end mill (one or more indexable insert pro cutting edge) 90°

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

KSSM87D100Z08SN12

OAL Overall length

50 mm

RPMX Rotational speed maximum

14800 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling

WT Weight of item

1.63 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
