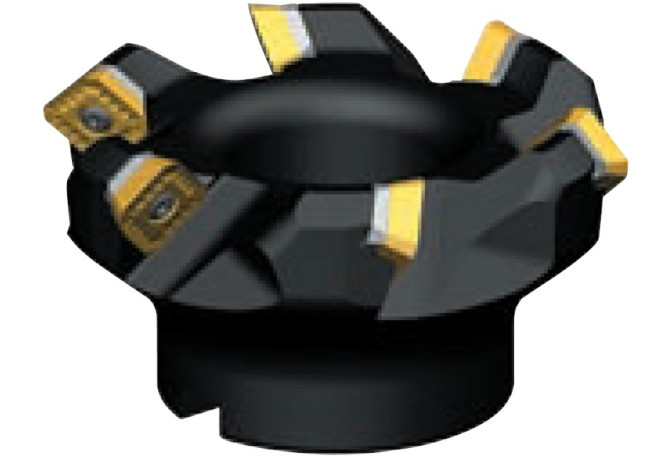

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter KSSISR630SE44345C6

KSSISR630SE44345C6

KSSISR630SE44345C6 KSSISR630SE44345C6 KSSISR630SE44345C6

KSSISR630SE44345C6

Kennametal
Артикул: 1817936
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6.604 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
160.02 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
173.6344 mm
Delivery state valid from
8/1/2008
DIN
FDA15000220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
45° Lead Mill - KSSM, coarse pitch, inch
ID Technical product number
1817936
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15000220
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
KSSISR630SE44345C6
OAL Overall length
62.992 mm
RPMX Rotational speed maximum
12500 1/min
Working process
No working processes available
WT Weight of item
4.495 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
