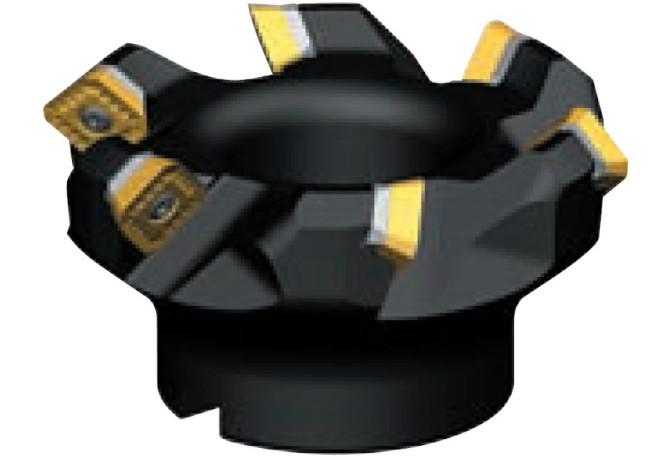

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter KSSISR394SE44345M5

KSSISR394SE44345M5

KSSISR394SE44345M5 KSSISR394SE44345M5 KSSISR394SE44345M5

KSSISR394SE44345M5

Kennametal
Артикул: 1817933
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
4064 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100.076 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
113.7158 mm
Delivery state valid from
8/1/2008
DIN
FDA12500220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
45° Lead Mill - KSSM, medium pitch, inch
ID Technical product number
1817933
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12500220
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
KSSISR394SE44345M5
OAL Overall length
50.0126 mm
RPMX Rotational speed maximum
16000 1/min
Working process
No working processes available
WT Weight of item
72.5744 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
