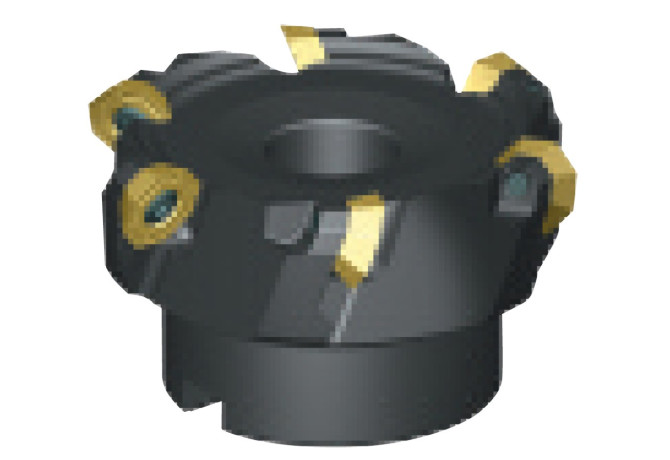

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter KSOM160R07OF07

KSOM160R07OF07

KSOM160R07OF07

Kennametal

Артикул: 3115881

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

1

CDX Cutting depth maximum

5 mm

CICT Cutting item count

7

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

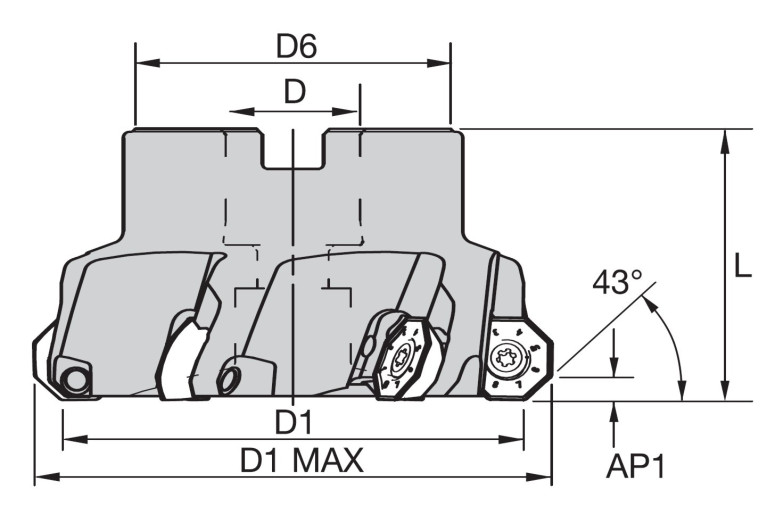

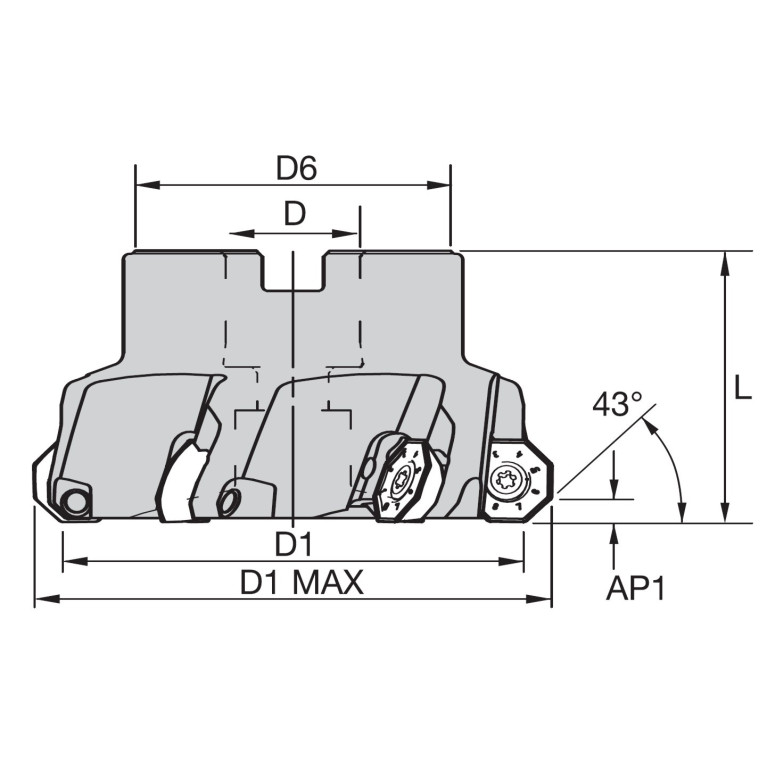

DC Cutting diameter

160 mm

DCCB Counterbore diameter connection bore

67 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

171 mm

Delivery state valid from

1/4/2011

DHUB Hub diameter

110 mm

DIN

FDA04000200

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

7

FamilyProducts

45° Lead Mill - KSOM, Medium Pitch, Metric

HAND Cutting direction

R - Right

ID Technical product number

3115881

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

43 Degree

LOC-03 CCFMS Connection code form

02

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04000200

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

KSOM160R07OF07

OAL Overall length

63 mm

RMPX Ramping angle maximum

1.7 Degree

RPMX Rotational speed maximum

3900 1/min

Working process

No working processes available

WT Weight of item

4.2 kg

ZEFF Face effective cutting edge count

7

ZEFP Peripheral effective cutting edge count

7
