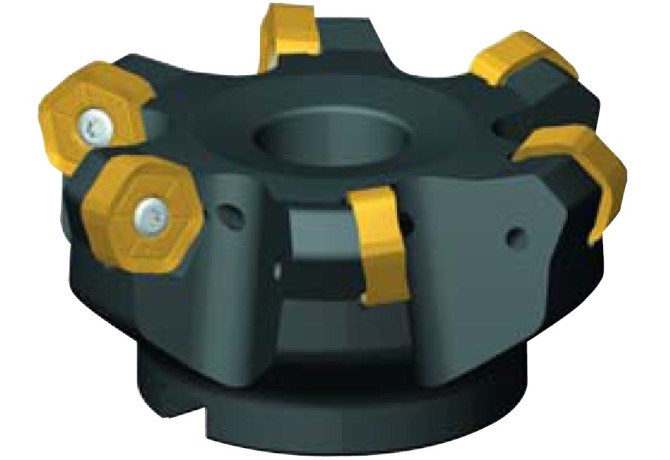

KSHR300HN5345M4

Артикул: 3326925

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

4.5212 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

0 - Without coolant exit

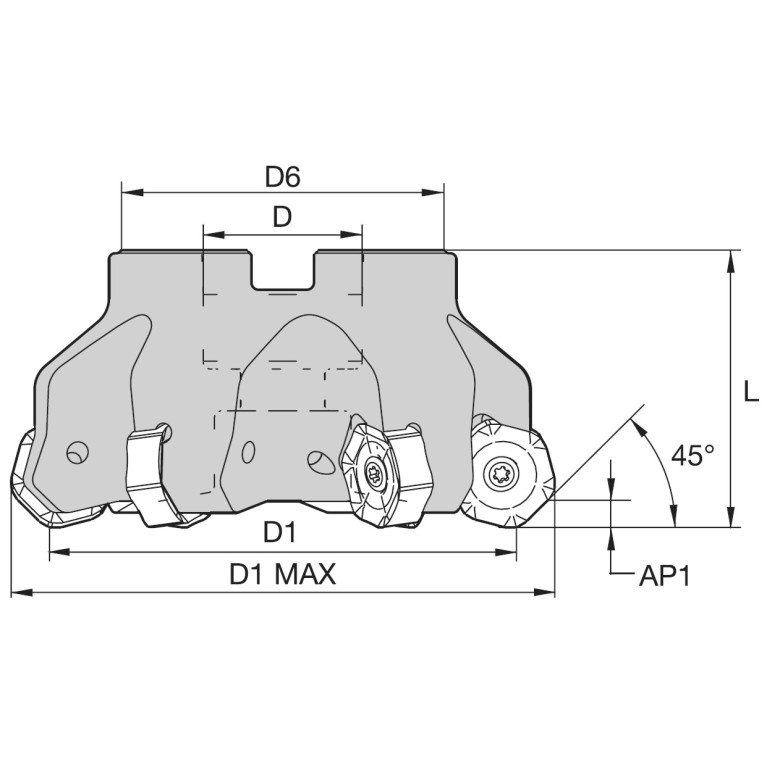

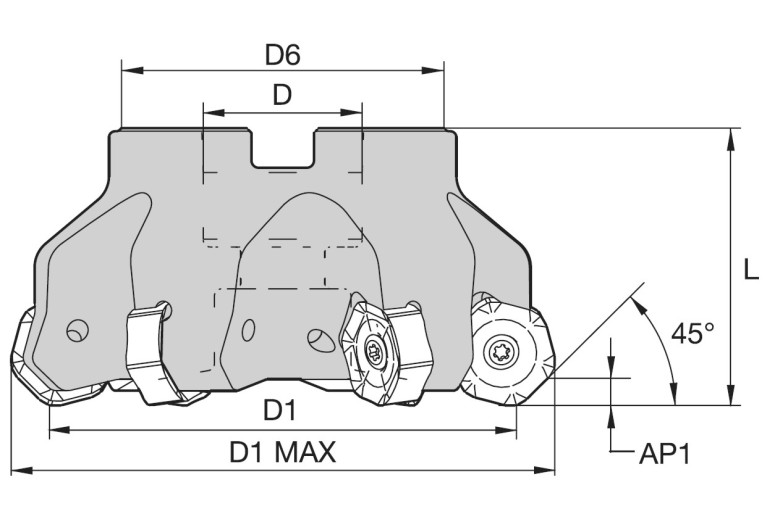

DC Cutting diameter

76.2 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

87.1982 mm

Delivery state valid from

12/1/2008

DIN

FDA10000220

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Dodeka Shell Mill, Right, Medium Pitch, Inch

HAND Cutting direction

R - Right

ID Technical product number

3326925

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10000220

Name Identifying order number

KSHR300HN5345M4

OAL Overall length

44.45 mm

RPMX Rotational speed maximum

8300 1/min

Working process

FPL - Face milling

WT Weight of item

1.97 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
