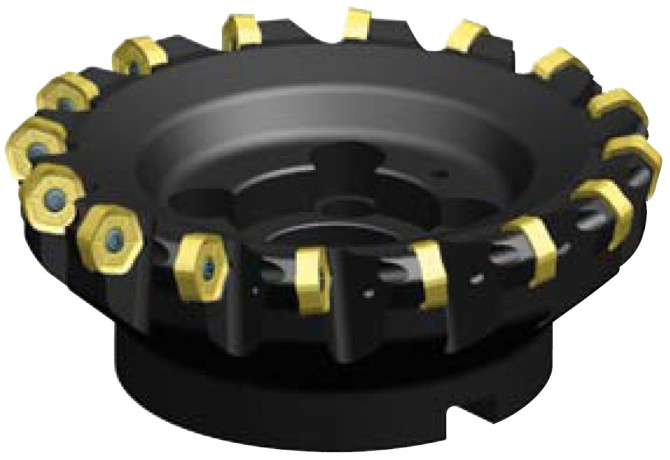

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter KSHR100B08RS45HN09

KSHR100B08RS45HN09

KSHR100B08RS45HN09 KSHR100B08RS45HN09 KSHR100B08RS45HN09

KSHR100B08RS45HN09

Kennametal
Артикул: 3325167
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
4.5 mm
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
111 mm
Delivery state valid from
1/4/2011
DIN
FDA03200200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Dodeka Shell Mills, Right, Coarse Pitch, Metric
HAND Cutting direction
R - Right
ID Technical product number
3325167
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03200200
Name Identifying order number
KSHR100B08RS45HN09
OAL Overall length
40 mm
RPMX Rotational speed maximum
6300 1/min
Working process
FPL - Face milling
WT Weight of item
1.7 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
