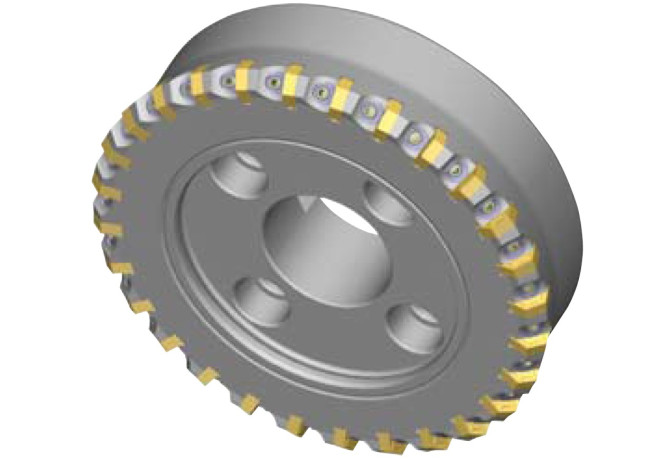

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter K1200C46LF45HN09SA

K1200C46LF45HN09SA

K1200C46LF45HN09SA K1200C46LF45HN09SA K1200C46LF45HN09SA

K1200C46LF45HN09SA

Kennametal
Артикул: 2404090
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
6.5024 mm
CICT Cutting item count
46
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
304.8 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
317.5 mm
Delivery state valid from
12/1/2008
DIN
FDA25000220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
46
FamilyProducts
HexaCut 45° Face Mills - Fine Pitch - Left Hand
HAND Cutting direction
L - Left
ID Technical product number
2404090
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2500
LOC-03 DCONMS Diameter
63.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA25000220
Name Identifying order number
K1200C46LF45HN09SA
OAL Overall length
80.01 mm
RPMX Rotational speed maximum
1800 1/min
Working process
FPL - Face milling
WT Weight of item
73.5 kg
ZEFF Face effective cutting edge count
46
ZEFP Peripheral effective cutting edge count
46
