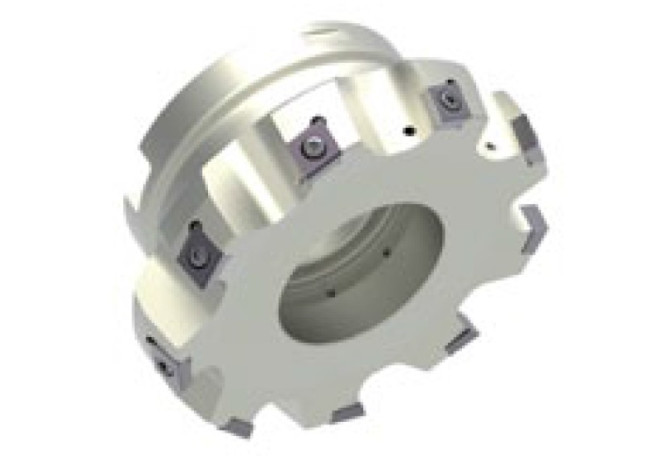

IFM751-063-CA22-Z6R-CT_D09

Артикул: 30395561

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A2A Clearance angle major Pos. A

0 Degree

ADJBY Adjustment property

0 - Adjustment not possible

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5.56 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

7 mm

CICT Cutting item count

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

MP - Mapal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

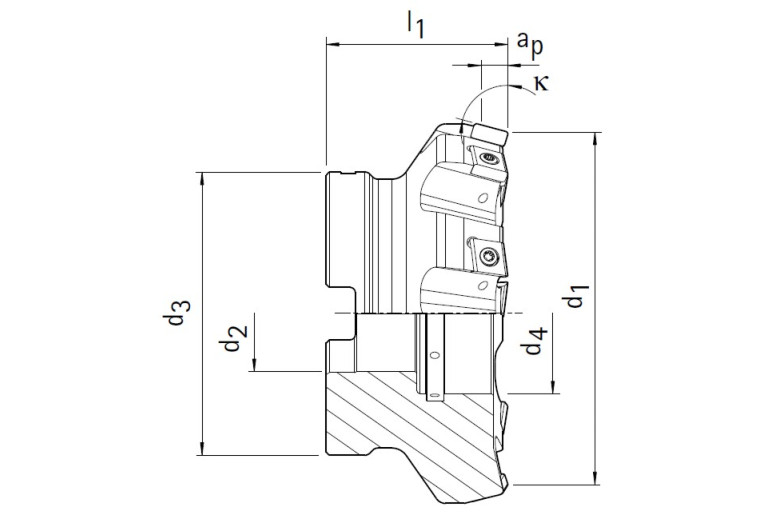

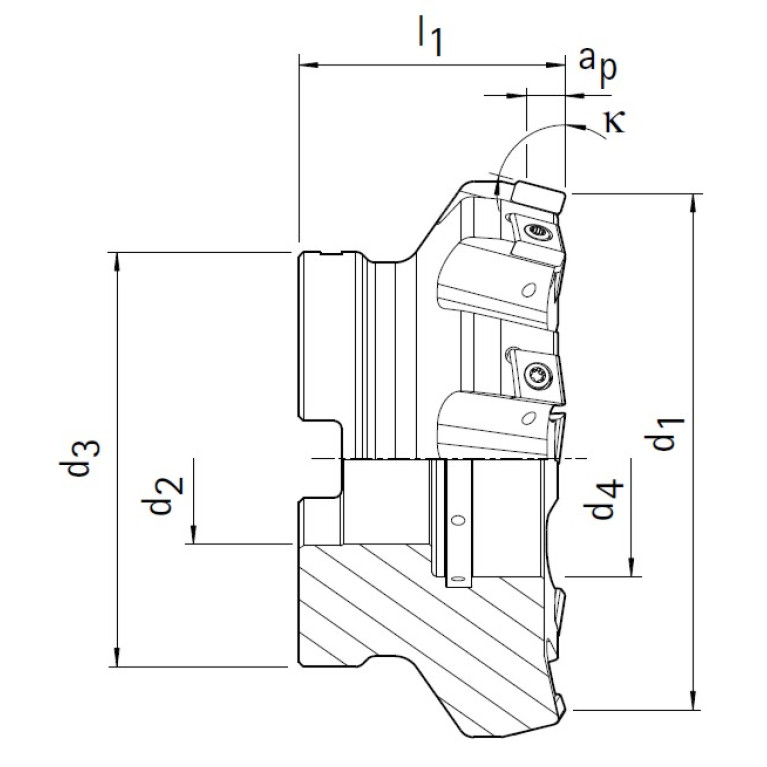

DC Cutting diameter

63 mm

DCCB Counterbore diameter connection bore

28.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

8/1/2013

DHUB Hub diameter

48 mm

DIN

FDA02200210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face milling head with tangential technology IFM75

HAND Cutting direction

R - Right

ID Technical product number

30395561

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

75 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02200210

Name Identifying order number

IFM751-063-CA22-Z6R-CT D09

OAL Overall length

50 mm

RPMX Rotational speed maximum

10000 1/min

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling

WT Weight of item

0.6 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
