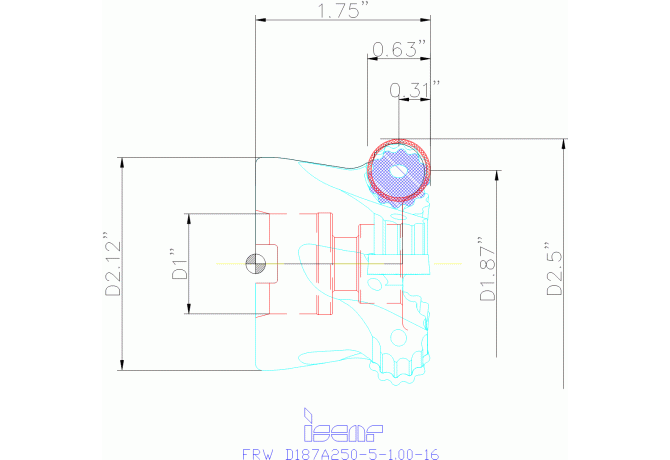

FRW D187A250-5-1.00-16

FRW D187A250-5-1.00-16 FRW D187A250-5-1.00-16

FRW D187A250-5-1.00-16

Iscar
Артикул: 3103461
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
16 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
5 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
8.001 mm
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
47.498 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
63.5 mm
Delivery state valid from
2/2/2015
DHUB Hub diameter
54.0004 mm
DIN
FDA10002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
FRW D187A250-5-1.00-16, SHREDMILL
HAND Cutting direction
R - Right
ID Technical product number
3103461
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002230
Name Identifying order number
FRW D187A250-5-1.00-16
OAL Overall length
44.45 mm
RMPX Ramping angle maximum
7 Degree
Working process
FPL - Face milling
WT Weight of item
24.13 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
