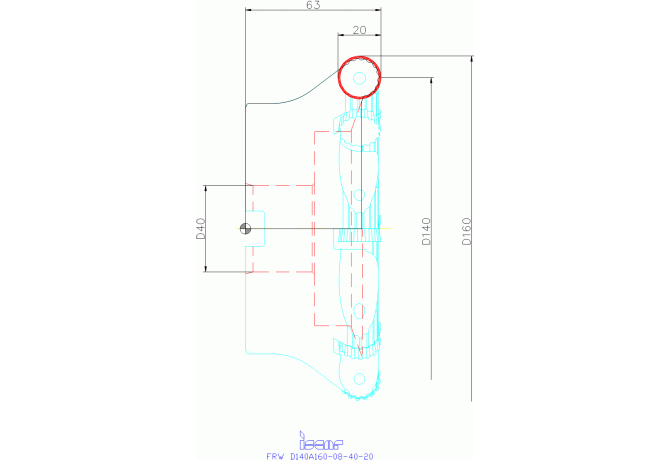

FRW D140A160-08-40-20

Артикул: 3104133

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

140 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

160 mm

DHUB Hub diameter

116 mm

DIN

SPK04000103

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Rough Profiling Face Mills with Serrated or Regular Round Inserts

HAND Cutting direction

R - Right

ID Technical product number

3104133

Interface codes

J6 / J61

ISO

SPK01G4000H$07

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

SPK01G4000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK04000103

Name Identifying order number

FRW D140A160-08-40-20

OAL Overall length

63 mm

RMPX Ramping angle maximum

3 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

3.55 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
