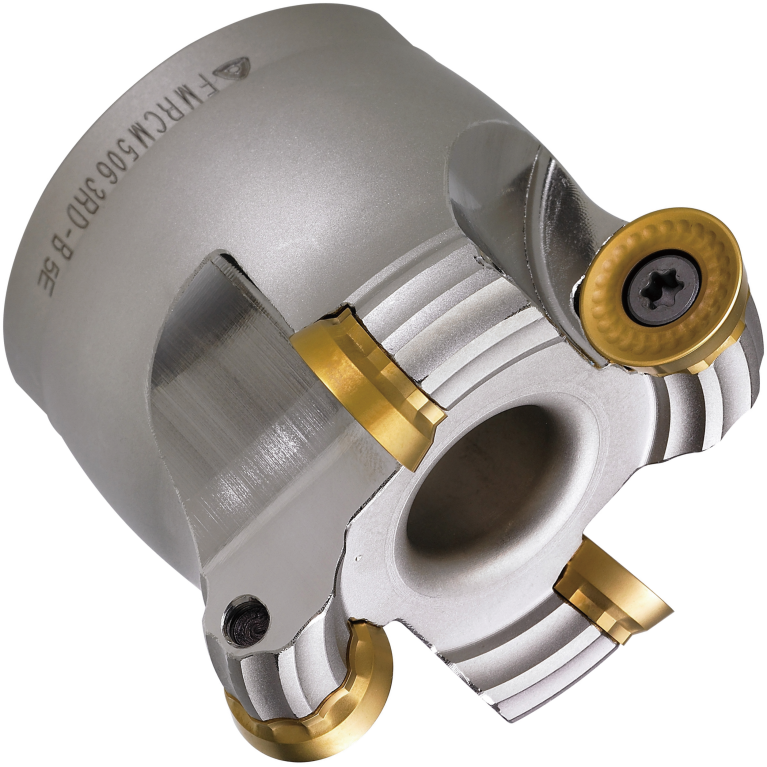

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter FMRCM6100HRD

FMRCM6100HRD

FMRCM6100HRD

Korloy

Артикул: 1-06-015869

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

0 Degree

A2A Clearance angle major Pos. A

15 Degree

B3A Inscribed circle diameter Pos. A

20 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

6.35 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

10 mm

CICT Cutting item count

5

CNSC Coolant entry style code

2 - With Coolant entry, radial

COMPC Company code

KOR - Korloy

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DBC diameter bolt circle 2

80 mm

DC Cutting diameter

100 mm

DCCB Counterbore diameter connection bore

26 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/4/2014

DHUB Hub diameter

67 mm

DIN

FDA03202220

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

5

FamilyProducts

FMRCM6000

GAMF Rake angle radial

-5 Degree

GAMP Rake angle axial

5 Degree

HAND Cutting direction

R - Right

ID Technical product number

1-06-015869

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202220

Name Identifying order number

FMRCM6100HRD

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

1.6 kg

ZEFP Peripheral effective cutting edge count

5
