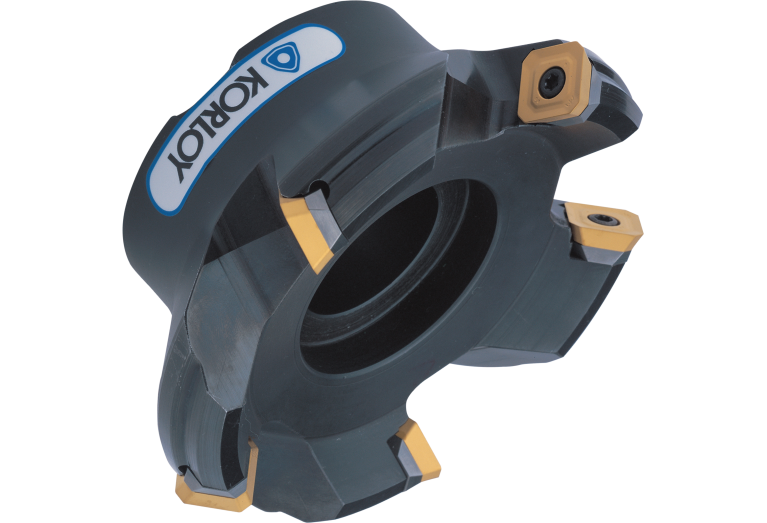

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter FMACM3100HR-H

FMACM3100HR-H

FMACM3100HR-H FMACM3100HR-H FMACM3100HR-H

FMACM3100HR-H

Korloy
Артикул: 1-06-015753
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
BLDA Tool style code Position A
2
CCONMS Connection count machine side
1
CDX Cutting depth maximum
4 mm
CICT Cutting item count
12
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
KOR - Korloy
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
100 mm
DCCB Counterbore diameter connection bore
26 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/4/2014
DHUB Hub diameter
67 mm
DIN
FDA03202220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
12
FamilyProducts
FMACM3000
GAMF Rake angle radial
-17 Degree
GAMP Rake angle axial
21 Degree
HAND Cutting direction
R - Right
ID Technical product number
1-06-015753
Interface codes
J6 /
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202220
Name Identifying order number
FMACM3100HR-H
OAL Overall length
50 mm
Working process
FPL - Face milling
WT Weight of item
1.7 kg
ZEFP Peripheral effective cutting edge count
12
