Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F75A D100-32-M

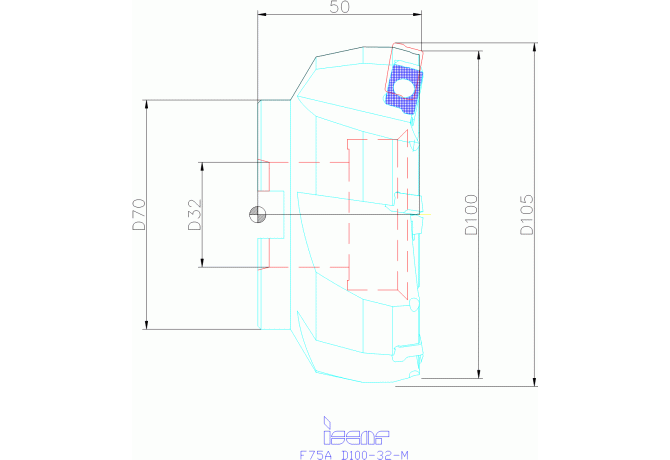

F75A D100-32-M

Артикул: 3100091

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DHUB Hub diameter

70 mm

DIN

FDA03201200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

75\S\0 Face Mills with HM90 AD..-1505... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3100091

Interface codes

J6 / J61

ISO

FDA02G3200H$07

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

75 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

FDA02G3200H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03201200

Name Identifying order number

F75A D100-32-M

OAL Overall length

50 mm

RMPX Ramping angle maximum

2.3 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

1.48 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
