Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F45WG D250-36-60-FX-R08

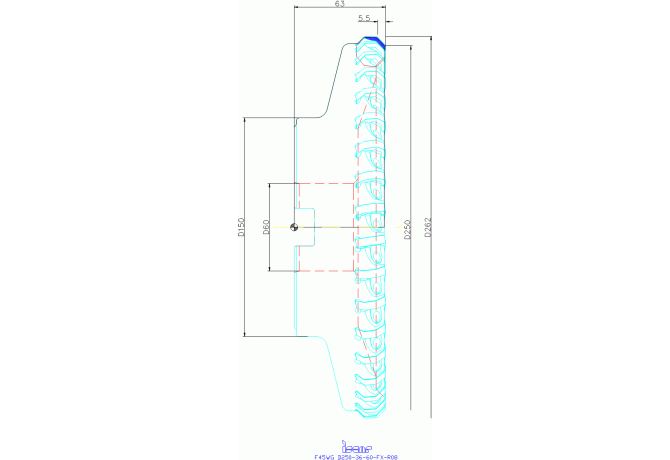

F45WG D250-36-60-FX-R08

Артикул: 3103873

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

250 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

262 mm

DHUB Hub diameter

150 mm

DIN

SPK06000303

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3103873

Interface codes

J6 / J61

ISO

SPK03G6000H$07

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

44.3 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0600

LOC-03 DCONMS Diameter

60 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

SPK03G6000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK06000303

Name Identifying order number

F45WG D250-36-60-FX-R08

OAL Overall length

63 mm

RMPX Ramping angle maximum

0 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

10.38 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
