Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F45ST D125-40

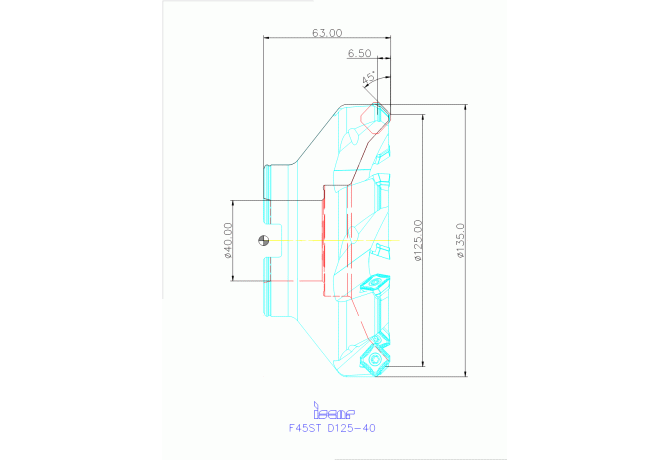

F45ST D125-40

Артикул: 3100383

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

135 mm

DHUB Hub diameter

75 mm

DIN

FDA04000205

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

45° Screw Clamped Face Mills Carrying SEK/MT 12... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3100383

Interface codes

J6 / J61

ISO

FDA02G4000H$07

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03 ISO

FDA02G4000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04000205

Name Identifying order number

F45ST D125-40

OAL Overall length

62.5 mm

RMPX Ramping angle maximum

3.6 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

2.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
