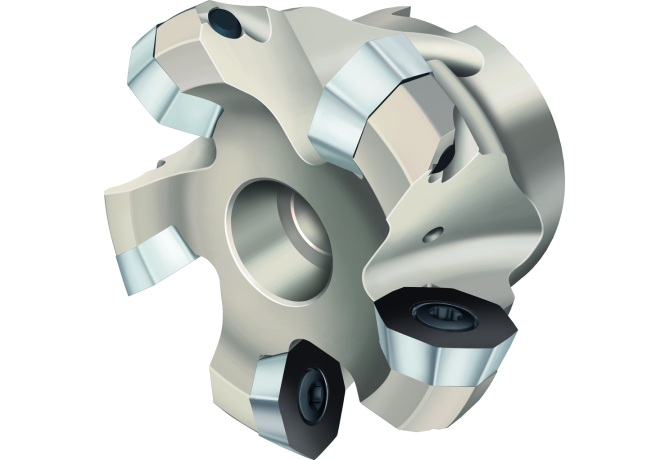

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4080.B27.080.Z06.04

F4080.B27.080.Z06.04

F4080.B27.080.Z06.04 F4080.B27.080.Z06.04 F4080.B27.080.Z06.04

F4080.B27.080.Z06.04

Walter
Артикул: 5159878
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1 mm
BD Body diameter
78.501 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
4 mm
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
20 mm
DC Cutting diameter
70 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
80 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
62 mm
DIN
FDA02701210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Octagonal face milling cutters F4080
HAND Cutting direction
R - Right
ID Technical product number
5159878
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G2700$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 ISO
FDA12G2700$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02701210
Name Identifying order number
F4080.B27.080.Z06.04
OAL Overall length
50 mm
RMPX Ramping angle maximum
4.2 Degree
RPMX Rotational speed maximum
15500 1/min
Working process
FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
1.102 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
