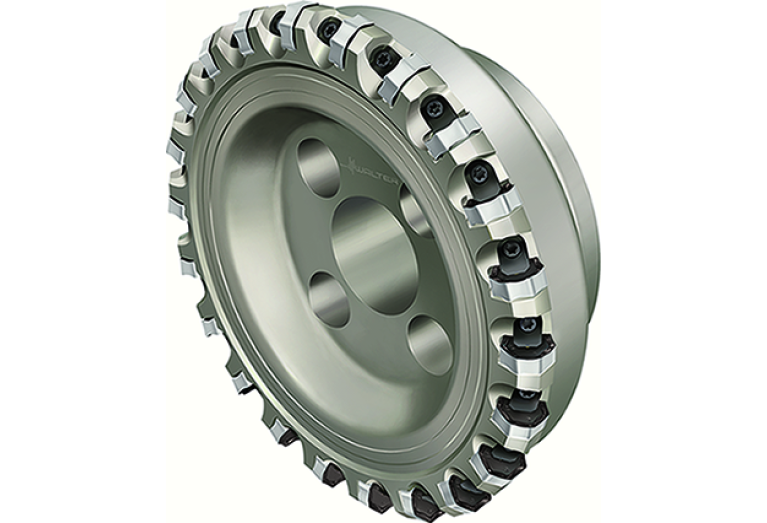

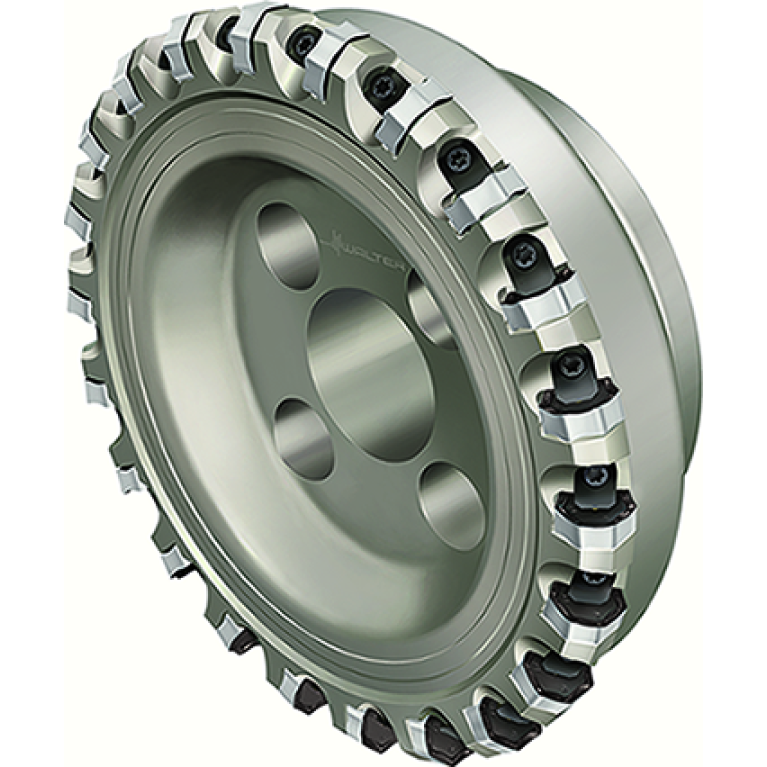

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4045.UB63.203.Z26.06

F4045.UB63.203.Z26.06

F4045.UB63.203.Z26.06 F4045.UB63.203.Z26.06 F4045.UB63.203.Z26.06 F4045.UB63.203.Z26.06

F4045.UB63.203.Z26.06

Walter
Артикул: 5874002
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
3
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit

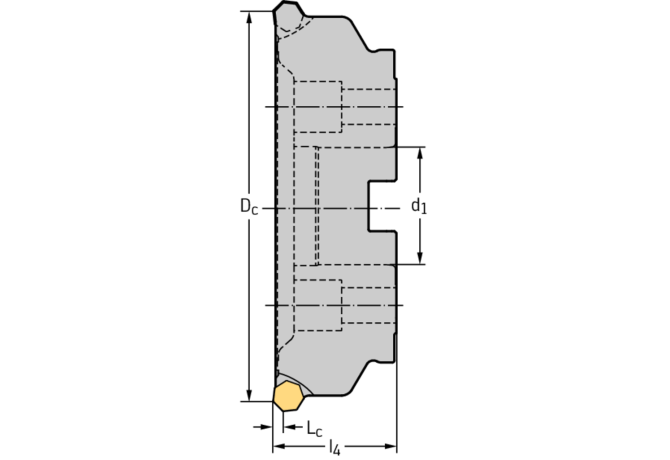

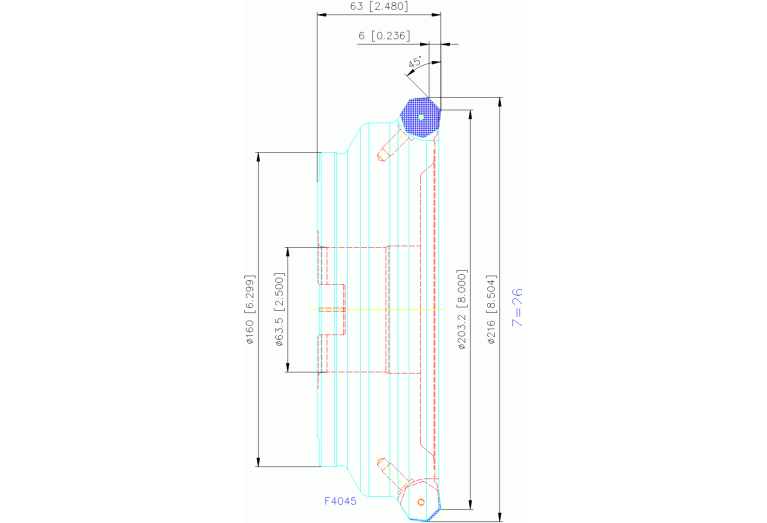

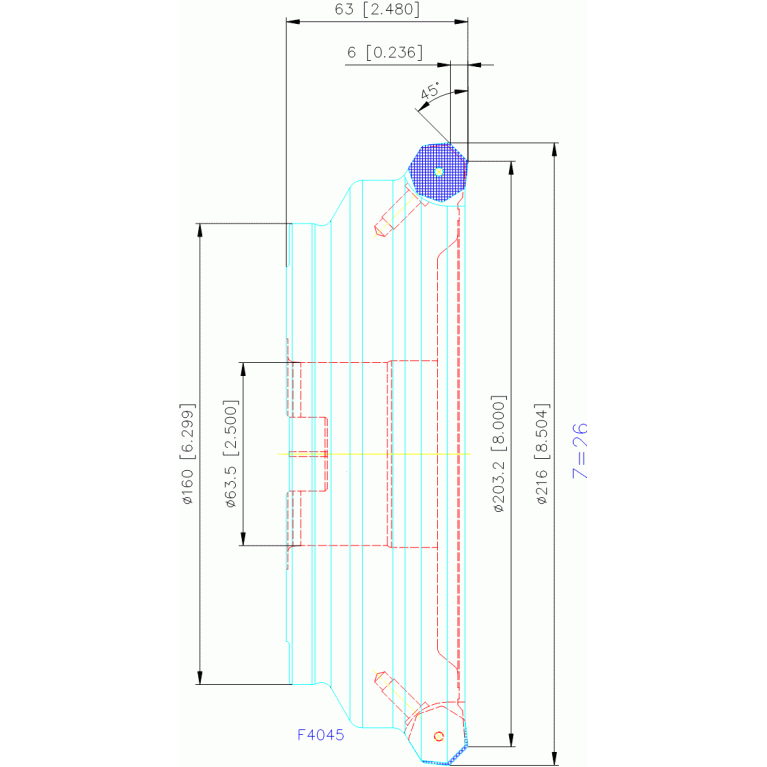

DC Cutting diameter
203.2 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
216 mm
Delivery state valid from
12/1/2023
DIN
SPK25000223
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
28
FamilyProducts
Heptagon face milling cutters F4045
HAND Cutting direction
R - Right
ID Technical product number
5874002
Interface codes
J6 / J61
ISO
SPK02S2500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-01 BI Block index
1
LOC-01 ISO
WR$$NC0906083R***12
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-NC0906**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$XN0906**3R*****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-XN0906**
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or
LOC-03 CCTMS Type
SPK Spindle nose mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
2500
LOC-03 DCONMS Diameter
63.5 mm
LOC-03 ISO
SPK02S2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK25000223
Name Identifying order number
F4045.UB63.203.Z26.06
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
3600 1/min
Working process
FPL - Face milling
WT Weight of item
8.76 kg
ZEFF Face effective cutting edge count
28
ZEFP Peripheral effective cutting edge count
28
