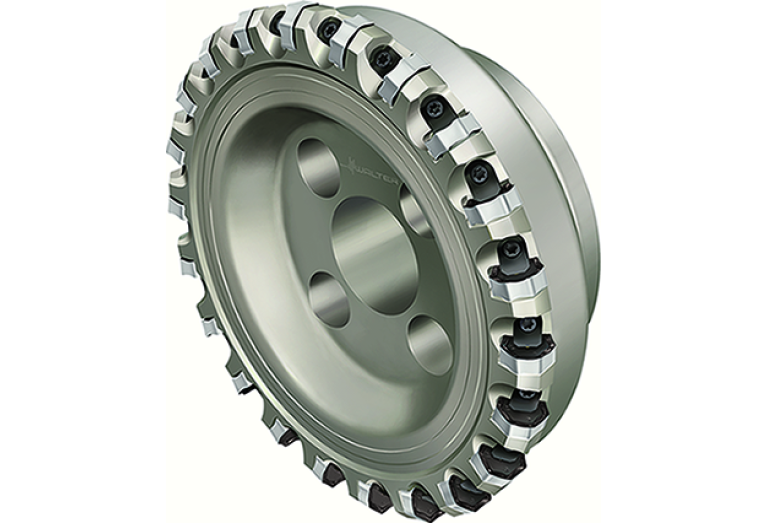

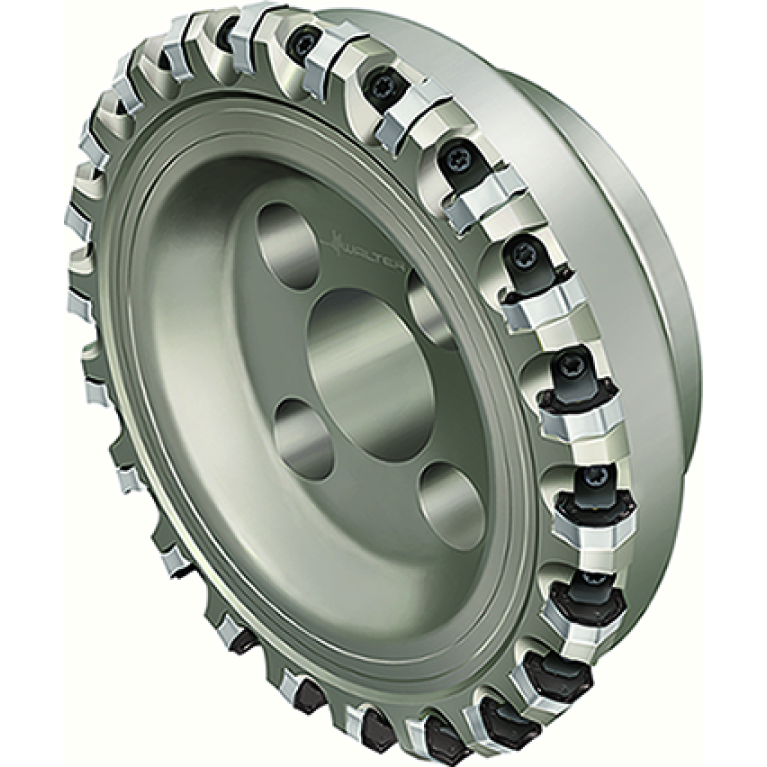

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4045.UB38.127.Z16.06

F4045.UB38.127.Z16.06

F4045.UB38.127.Z16.06 F4045.UB38.127.Z16.06 F4045.UB38.127.Z16.06 F4045.UB38.127.Z16.06

F4045.UB38.127.Z16.06

Walter
Артикул: 5874000
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
3
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
33 mm
DC Cutting diameter
127 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
139.8 mm
Delivery state valid from
12/1/2023
DIN
FDA15001220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
18
FamilyProducts
Heptagon face milling cutters F4045
HAND Cutting direction
R - Right
ID Technical product number
5874000
Interface codes
J6 / J61
ISO
FDA12S1500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-01 BI Block index
1
LOC-01 ISO
WR$$NC0906083R***12
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-NC0906**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$XN0906**3R*****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-XN0906**
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA12S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15001220
Name Identifying order number
F4045.UB38.127.Z16.06
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
4500 1/min
Working process
FPL - Face milling
WT Weight of item
3.443 kg
ZEFF Face effective cutting edge count
18
ZEFP Peripheral effective cutting edge count
18
