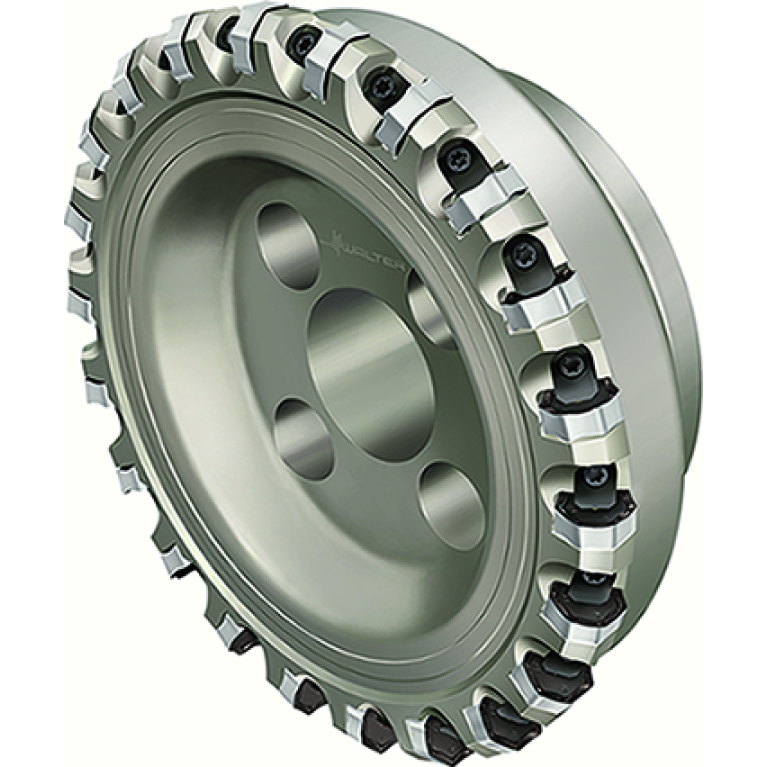

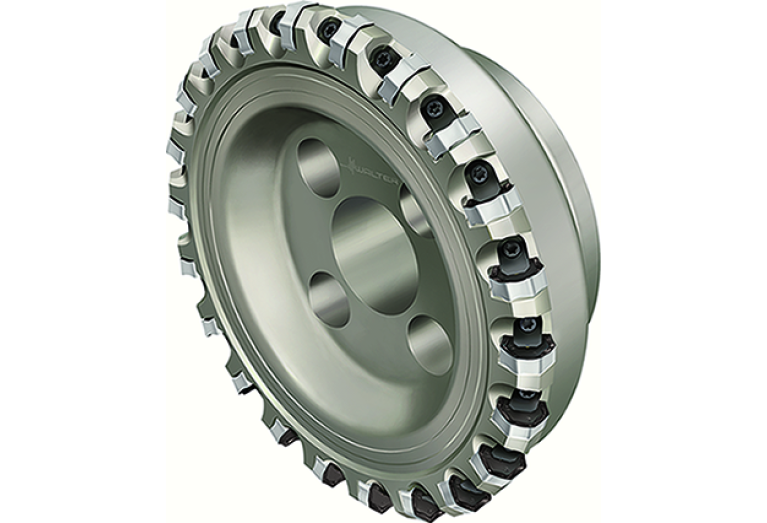

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4045.UB38.102.Z14.04

F4045.UB38.102.Z14.04

F4045.UB38.102.Z14.04 F4045.UB38.102.Z14.04 F4045.UB38.102.Z14.04 F4045.UB38.102.Z14.04

F4045.UB38.102.Z14.04

Walter
Артикул: 5835217
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
3
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
33 mm
DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
111.4 mm
Delivery state valid from
12/1/2023
DIN
FDA15001220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
16
FamilyProducts
Heptagon face milling cutters F4045
HAND Cutting direction
R - Right
ID Technical product number
5835217
Interface codes
J6 / J61
ISO
FDA12S1500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-01 BI Block index
1
LOC-01 ISO
WR$$NC0705083R***08
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-NC0705**
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA12S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15001220
Name Identifying order number
F4045.UB38.102.Z14.04
OAL Overall length
50 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
7800 1/min
Working process
FPL - Face milling
WT Weight of item
1.848 kg
ZEFF Face effective cutting edge count
16
ZEFP Peripheral effective cutting edge count
16
