Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4045.B32.100.Z10.04

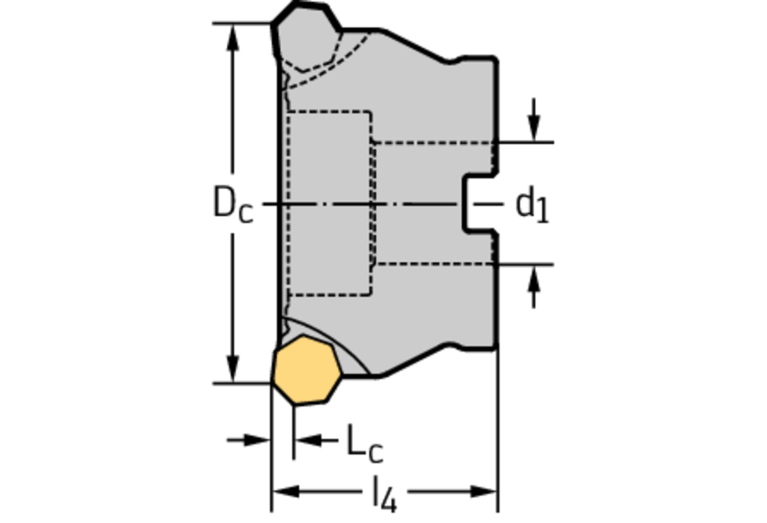

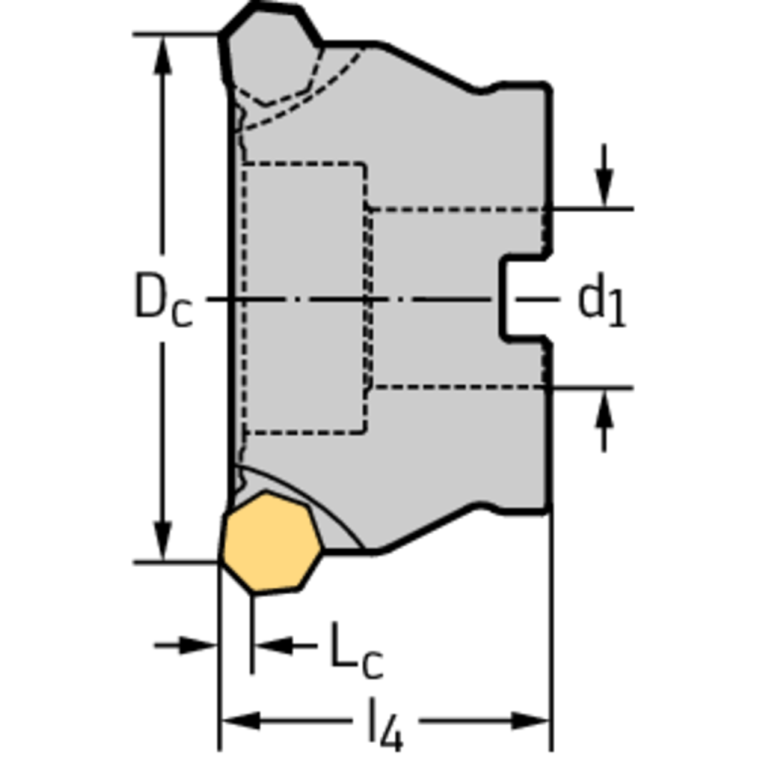

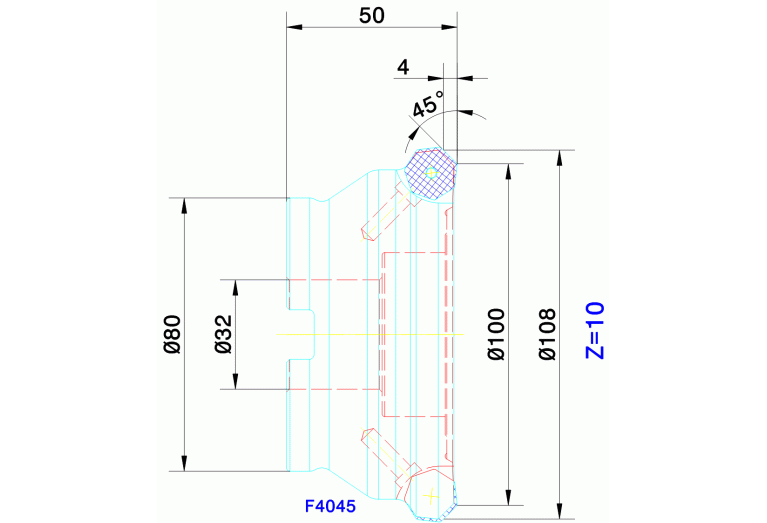

F4045.B32.100.Z10.04

F4045.B32.100.Z10.04 F4045.B32.100.Z10.04 F4045.B32.100.Z10.04 F4045.B32.100.Z10.04

F4045.B32.100.Z10.04

Walter
Артикул: 5963499
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
0.9 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
4 mm
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
45 mm
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
109.8 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
80 mm
DIN
FDA03202200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts

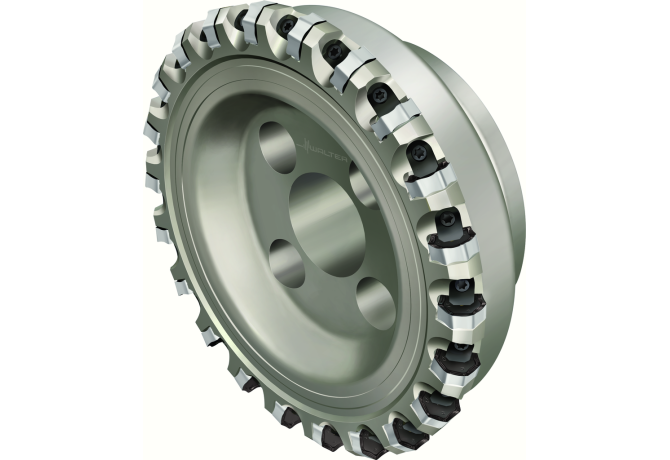

Heptagon face milling cutters F4045
HAND Cutting direction
R - Right
ID Technical product number
5963499
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA22G3200$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
FDA22G3200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202200
Name Identifying order number
F4045.B32.100.Z10.04
OAL Overall length
50 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
7900 1/min
Working process
FPL - Face milling
WT Weight of item
1.8 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
