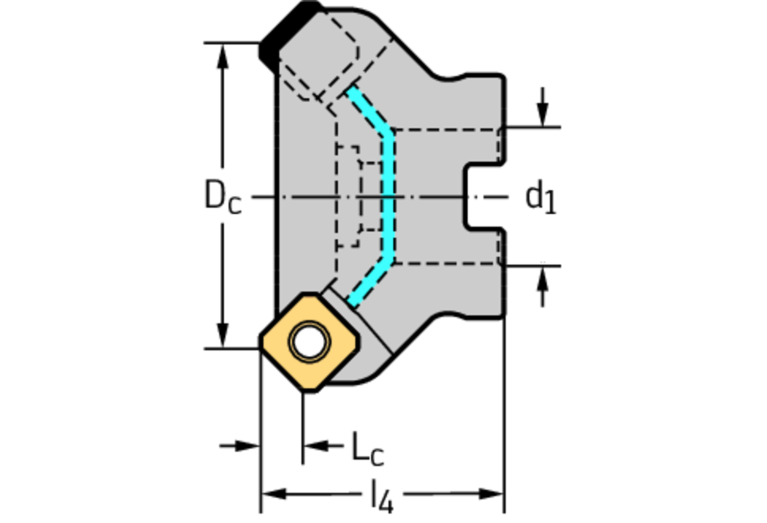

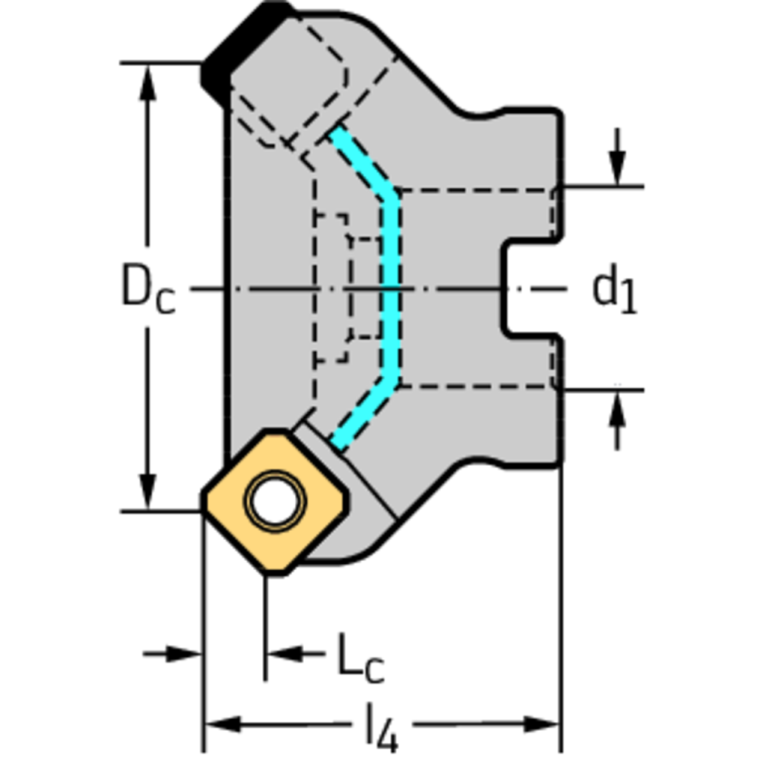

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

F4033.UB19.064.Z08.06

Walter

Артикул: 5051531

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

AZ Plunge depth maximum

2 mm

BD Body diameter

74.9 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

2

CDX Cutting depth maximum

6.5 mm

CICT Cutting item count

8

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DAH Diameter access hole

17 mm

DC Cutting diameter

63.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

76.5 mm

Delivery state valid from

12/1/2023

DHUB Hub diameter

54 mm

DIN

FDA07501230

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

8

FamilyProducts

Face milling cutters F4033

HAND Cutting direction

R - Right

ID Technical product number

5051531

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO

FDA12R7500$$$$

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Form

12

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 ISO

FDA12R7500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA07501230

Name Identifying order number

F4033.UB19.064.Z08.06

OAL Overall length

40 mm

RMPX Ramping angle maximum

0 Degree

RPMX Rotational speed maximum

15900 1/min

Working process

FPL - Face milling

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

8

ZEFP Peripheral effective cutting edge count

8
