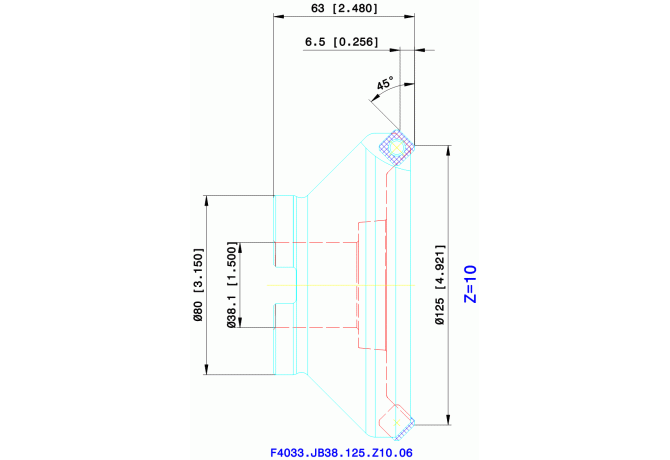

F4033.JB38.125.Z10.06

F4033.JB38.125.Z10.06 F4033.JB38.125.Z10.06

F4033.JB38.125.Z10.06

Walter
Артикул: 6078463
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.8 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6.5 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
60 mm
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
138 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
80 mm
DIN
FDA15002230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
Face milling cutters F4033
HAND Cutting direction
R - Right
ID Technical product number
6078463
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA22S1500$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
22
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA22S1500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002230
Name Identifying order number
F4033.JB38.125.Z10.06
OAL Overall length
63 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
11300 1/min
Working process
FPL - Face milling
WT Weight of item
3.673 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
