Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2334.UT28.031.Z05.04

F2334.UT28.031.Z05.04

F2334.UT28.031.Z05.04 F2334.UT28.031.Z05.04

F2334.UT28.031.Z05.04

Walter
Артикул: 5050746
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

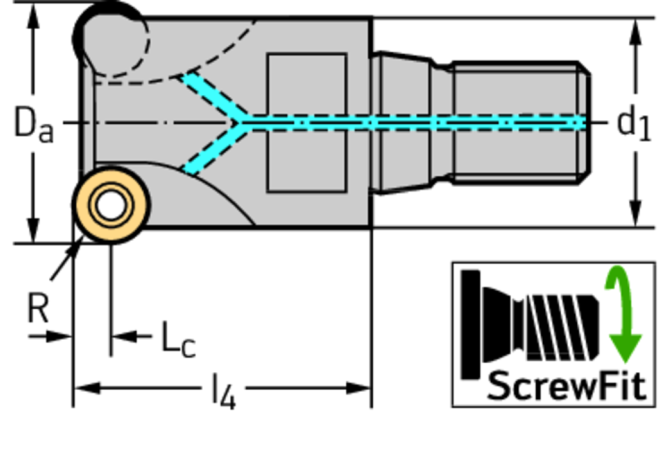

DC Cutting diameter
23.75 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
31.75 mm
Delivery state valid from
12/1/2023
DIN
SAW02800195
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
Copy milling cutters with round inserts F2334
HAND Cutting direction
R - Right
ID Technical product number
5050746
Interface codes
J6 / J61
ISO
SAW01C0280$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-01 BI Block index
1
LOC-01 ISO
WR$$KP2905013R*****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-KP2905**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$MP0803**3******
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-MP0803**
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0280
LOC-03 DCONMS Diameter
28 mm
LOC-03 ISO
SAW01C0280$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02800195
Name Identifying order number
F2334.UT28.031.Z05.04
OAL Overall length
69 mm
RMPX Ramping angle maximum
5.5 Degree
RPMX Rotational speed maximum
37300 1/min
Working process
No working processes available
WT Weight of item
0.207 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
