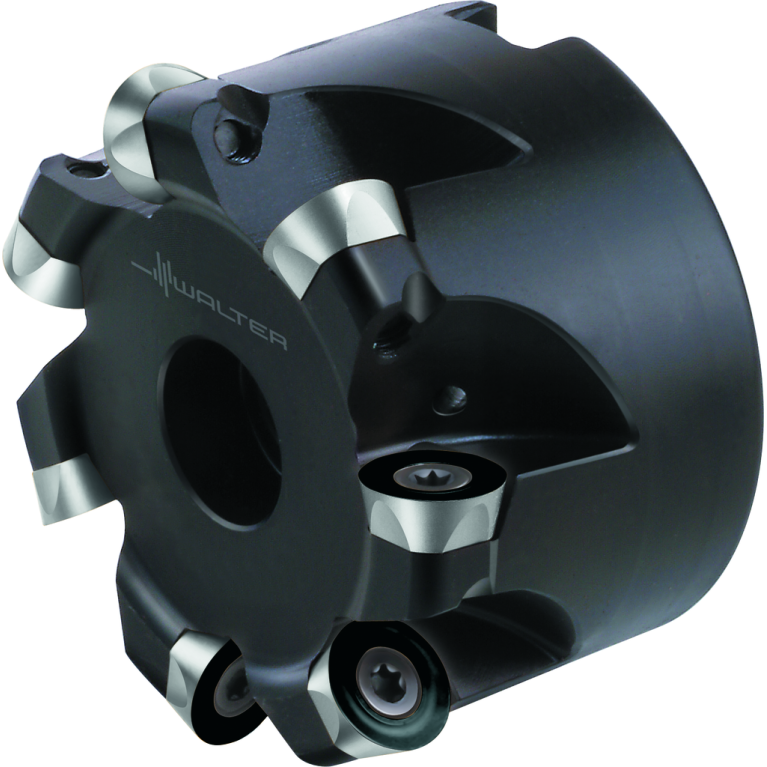

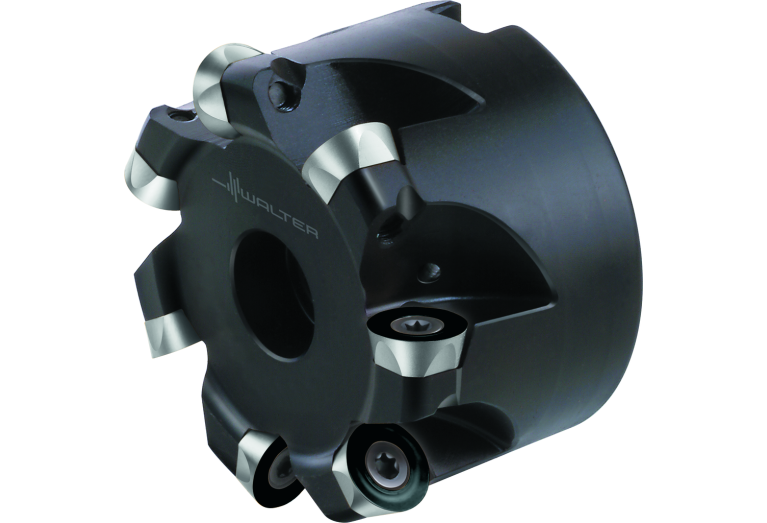

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2334R.B22.052.Z06.06

F2334R.B22.052.Z06.06

F2334R.B22.052.Z06.06 F2334R.B22.052.Z06.06 F2334R.B22.052.Z06.06

F2334R.B22.052.Z06.06

Walter
Артикул: 6111730
В наличии
В корзину
Описание
Характеристики

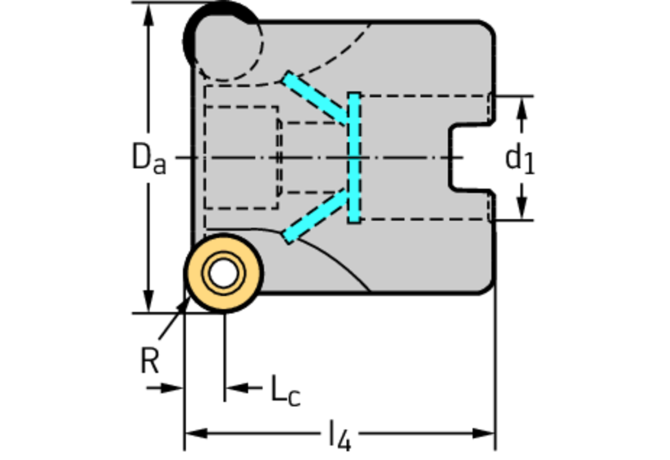

ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.3 mm
BD Body diameter
49.55 mm
BLDA Tool style code Position A
10
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
6 mm
DAH Diameter access hole
17 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
52 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
48 mm
DIN
FDA02201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Copy milling cutters with round inserts F2334R
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
6111730
Interface codes
J6 / J61
ISO
FDA12G2200$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
FDA12G2200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02201210
Name Identifying order number
F2334R.B22.052.Z06.06
OAL Overall length
40 mm
RMPX Ramping angle maximum
5.3 Degree
RPMX Rotational speed maximum
24700 1/min
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.36 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
