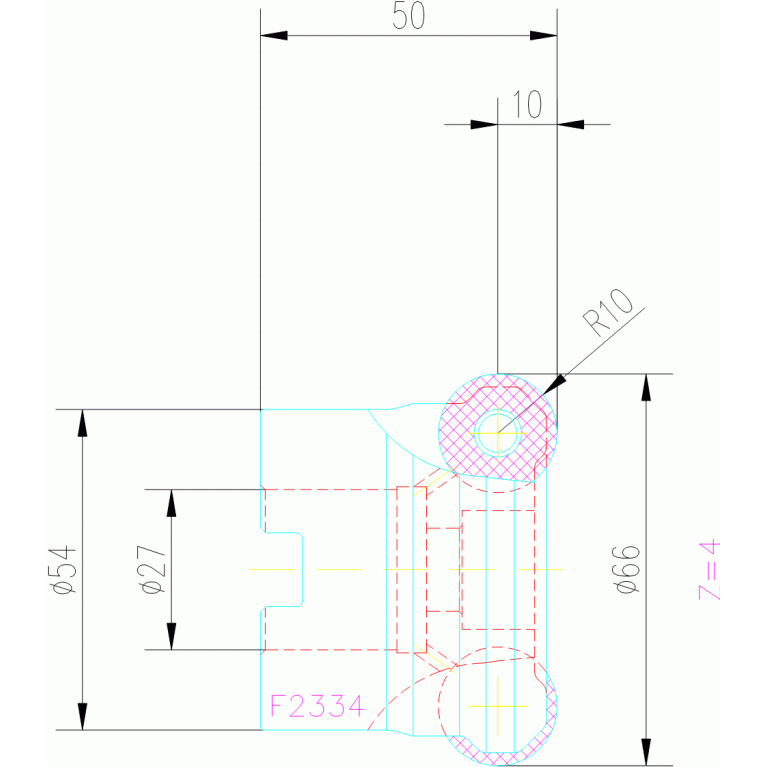

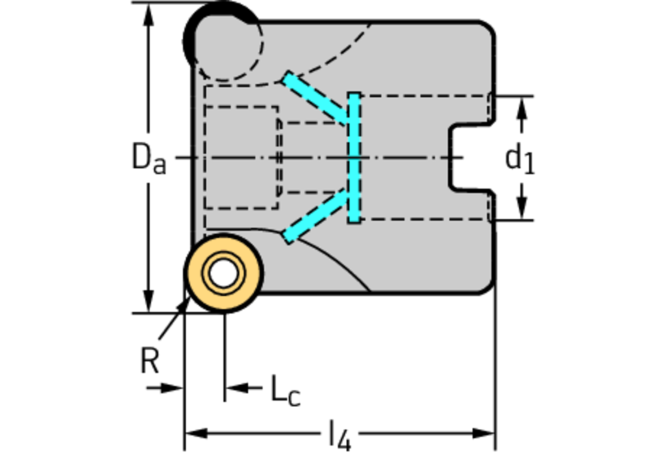

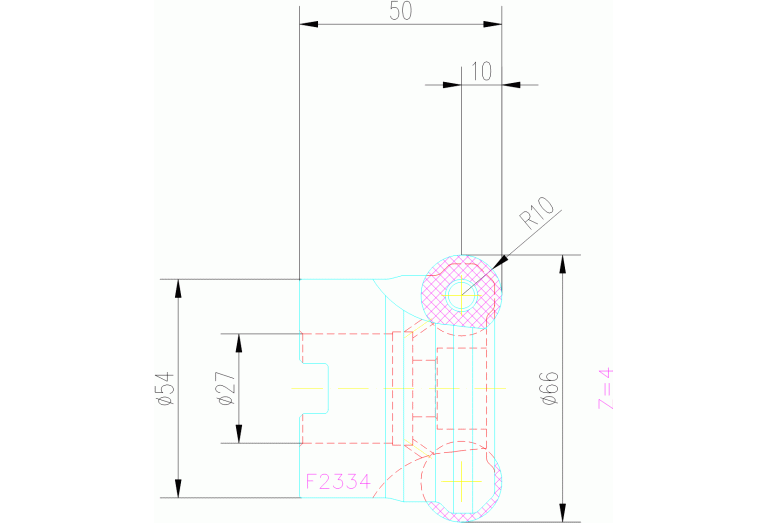

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2334.B27.066.Z04.10

F2334.B27.066.Z04.10

F2334.B27.066.Z04.10 F2334.B27.066.Z04.10 F2334.B27.066.Z04.10

F2334.B27.066.Z04.10

Walter
Артикул: 5088215
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
20 mm
DC Cutting diameter
46 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
66 mm
Delivery state valid from
12/1/2023
DIN
FDA02701210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Copy milling cutters with round inserts F2334
HAND Cutting direction
R - Right
ID Technical product number
5088215
Interface codes
J6 / J61
ISO
FDA12G2700$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-01 BI Block index
1
LOC-01 ISO
WR$$RO2006M03****M0
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-RO2006**
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 ISO
FDA12G2700$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02701210
Name Identifying order number
F2334.B27.066.Z04.10
OAL Overall length
50 mm
RMPX Ramping angle maximum
5.3 Degree
RPMX Rotational speed maximum
17400 1/min
Working process
No working processes available
WT Weight of item
0.61 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
