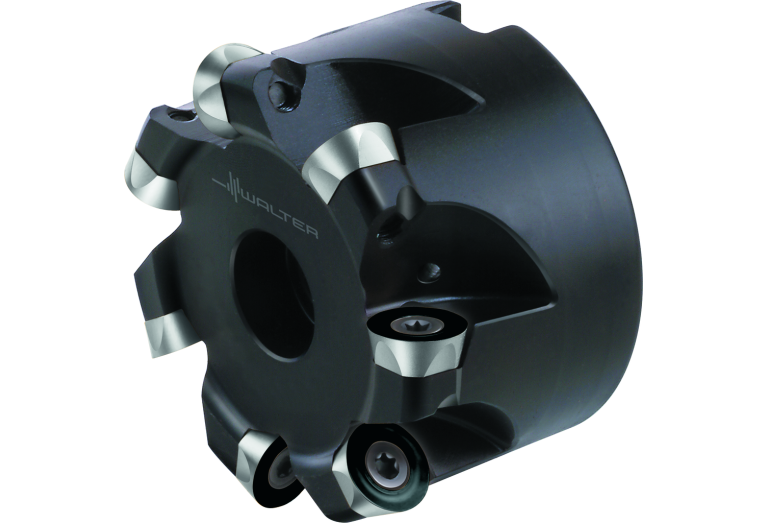

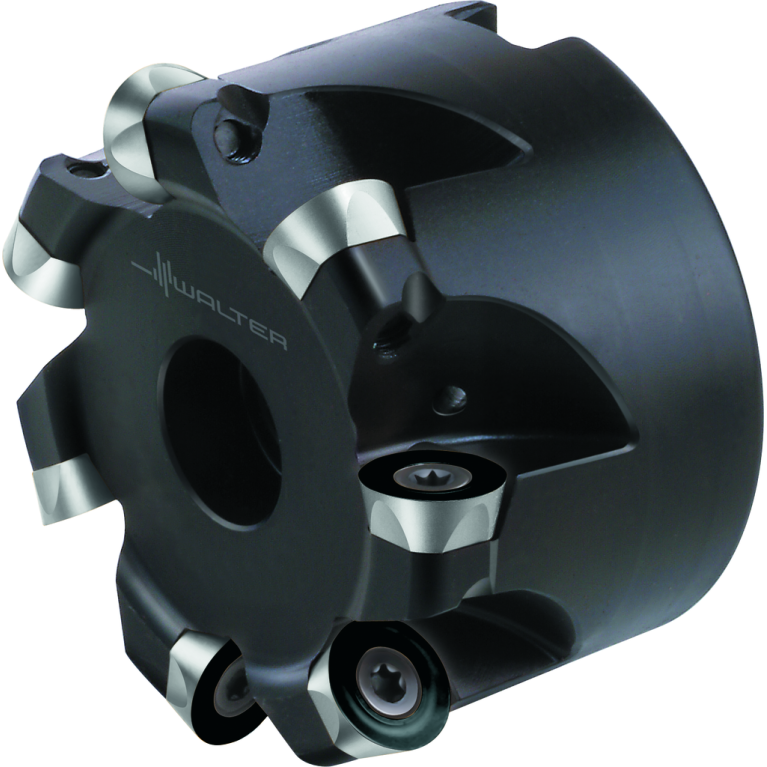

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2334.B22.052.Z04.08

F2334.B22.052.Z04.08

F2334.B22.052.Z04.08 F2334.B22.052.Z04.08 F2334.B22.052.Z04.08

F2334.B22.052.Z04.08

Walter
Артикул: 5054919
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.4 mm

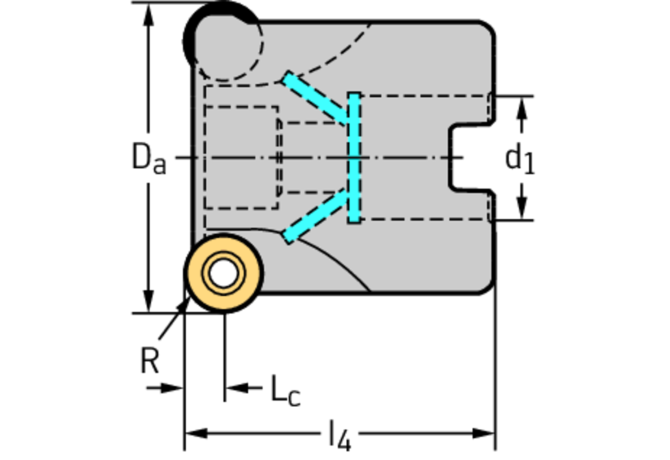

BD Body diameter
49.1 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8 mm
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
17 mm
DC Cutting diameter
36 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
52 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
41 mm
DIN
FDA02201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Copy milling cutters with round inserts F2334
HAND Cutting direction
R - Right
ID Technical product number
5054919
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G2200$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
FDA12G2200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02201210
Name Identifying order number
F2334.B22.052.Z04.08
OAL Overall length
40 mm
RMPX Ramping angle maximum
6.1 Degree
RPMX Rotational speed maximum
22500 1/min
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
0.261 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
