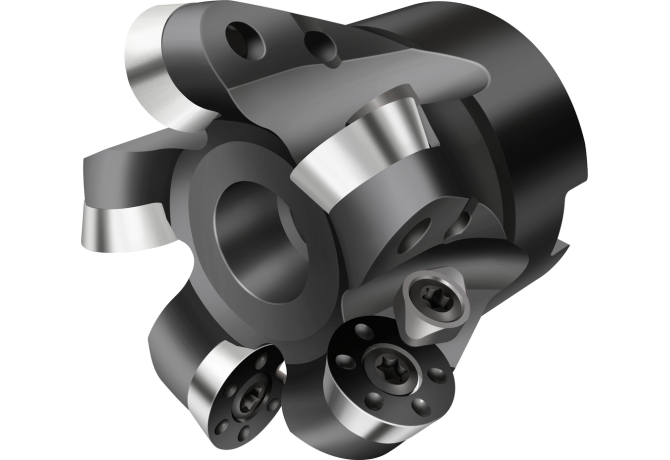

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2234.B.100.Z08.06

F2234.B.100.Z08.06

F2234.B.100.Z08.06 F2234.B.100.Z08.06 F2234.B.100.Z08.06

F2234.B.100.Z08.06

Walter
Артикул: 5001075
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1 mm
BD Body diameter
97 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
6 mm
CICT Cutting item count
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
27 mm
DC Cutting diameter
88 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
100 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
80 mm
DIN
FDA03201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Copy milling cutters with round inserts F2234
HAND Cutting direction
R - Right
ID Technical product number
5001075
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G3200$$$$
ISYC Subclass
308-01 - Face milling cutter
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
FDA12G3200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03201210
Name Identifying order number
F2234.B.100.Z08.06
OAL Overall length
50 mm
RMPX Ramping angle maximum
3.1 Degree
RPMX Rotational speed maximum
16600 1/min
Working process
FFO - Die milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling
WT Weight of item
1.543 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
