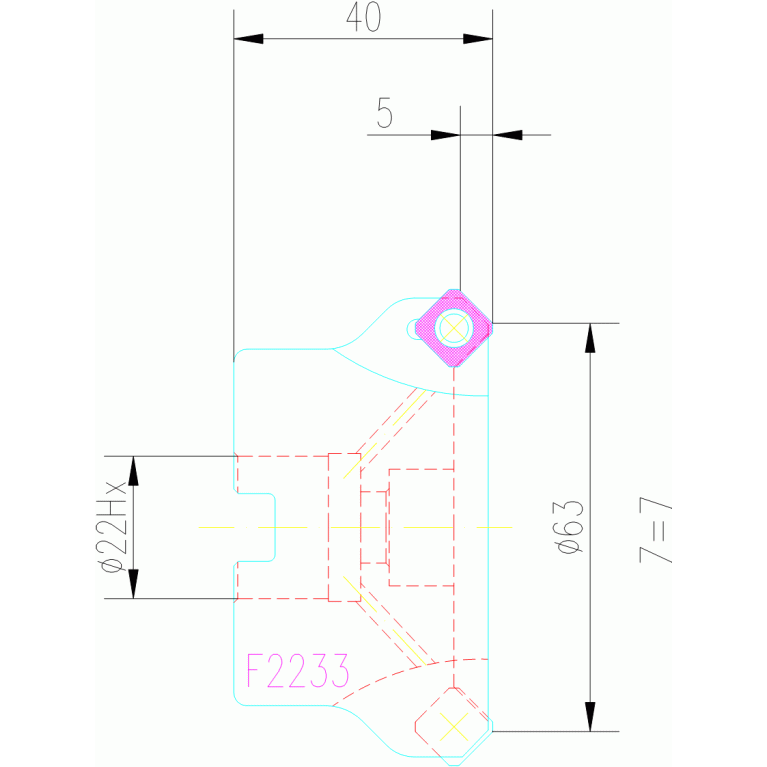

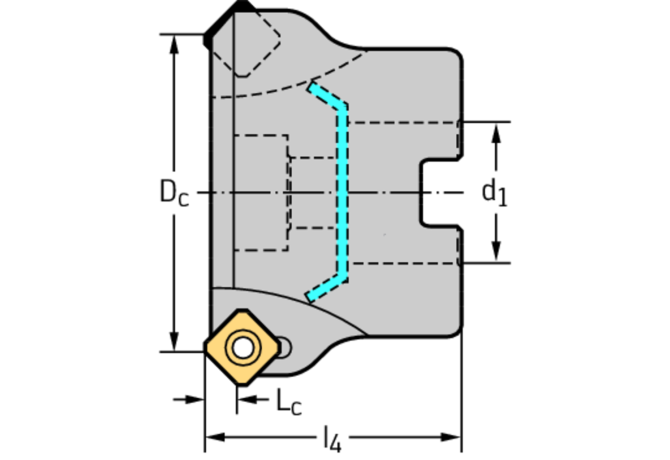

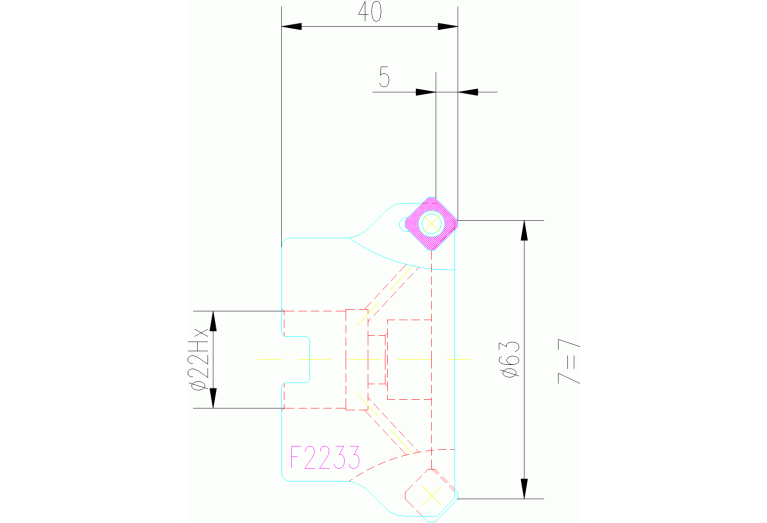

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2233.B.063.Z07.05

F2233.B.063.Z07.05

F2233.B.063.Z07.05 F2233.B.063.Z07.05 F2233.B.063.Z07.05

F2233.B.063.Z07.05

Walter
Артикул: 5001274
В наличии
В корзину
Описание
Характеристики
BI Block index
1
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
17 mm
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
73.465 mm
Delivery state valid from
12/1/2023
DIN
FDA02201210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
Face milling cutters F2233
HAND Cutting direction
R - Right
ID Technical product number
5001274
Interface codes
J6 / J61
ISO
FDA12G2200$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-01 BI Block index
1
LOC-01 ISO
WR$$SD09T3**3R*AE**
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-SD09T3**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$SD09T3123R***12
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-SD09T3AE
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03 ISO
FDA12G2200$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02201210
Name Identifying order number
F2233.B.063.Z07.05
OAL Overall length
40 mm
RMPX Ramping angle maximum
5.2 Degree
RPMX Rotational speed maximum
25000 1/min
Working process
FPL - Face milling
WT Weight of item
0.84 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
