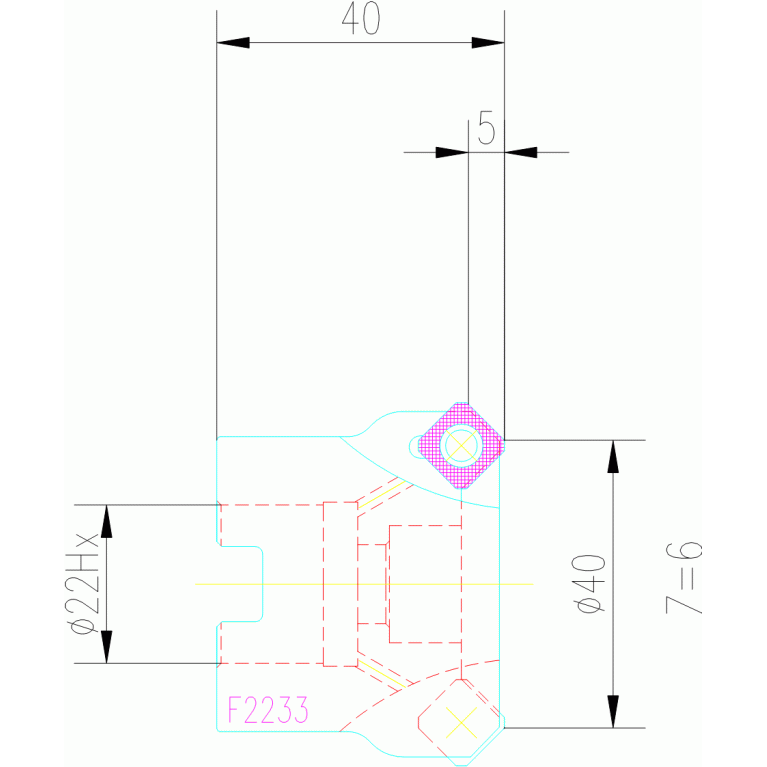

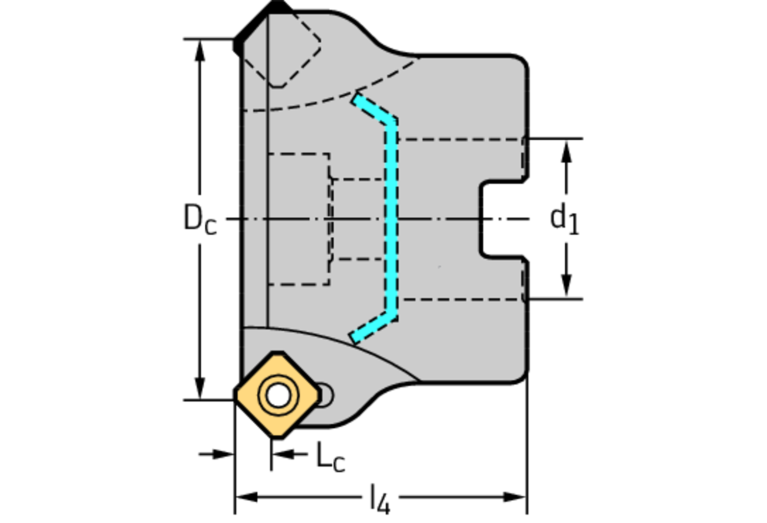

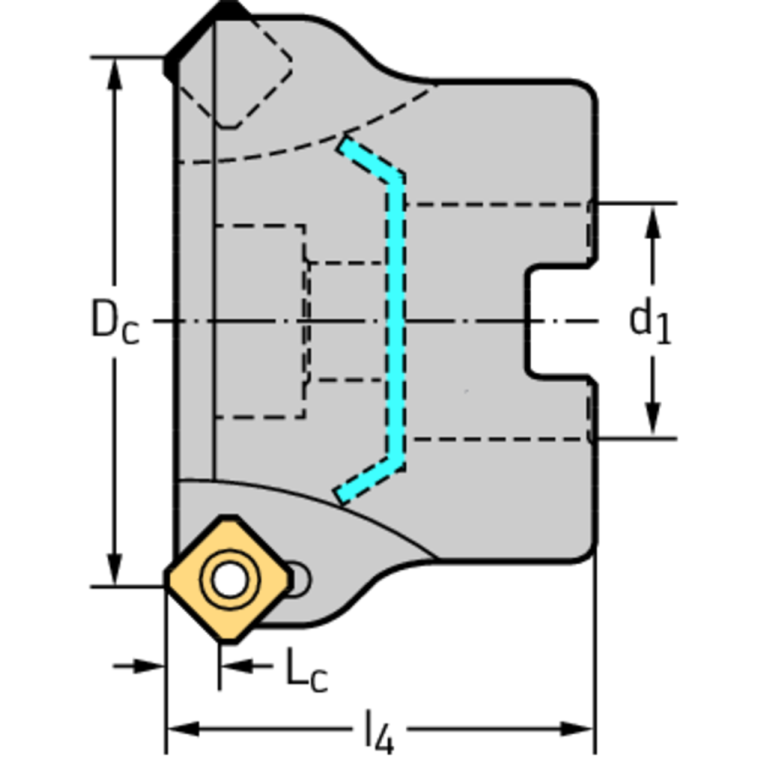

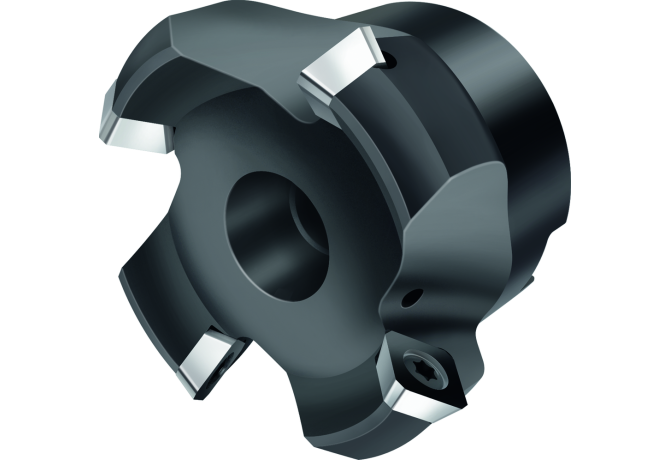

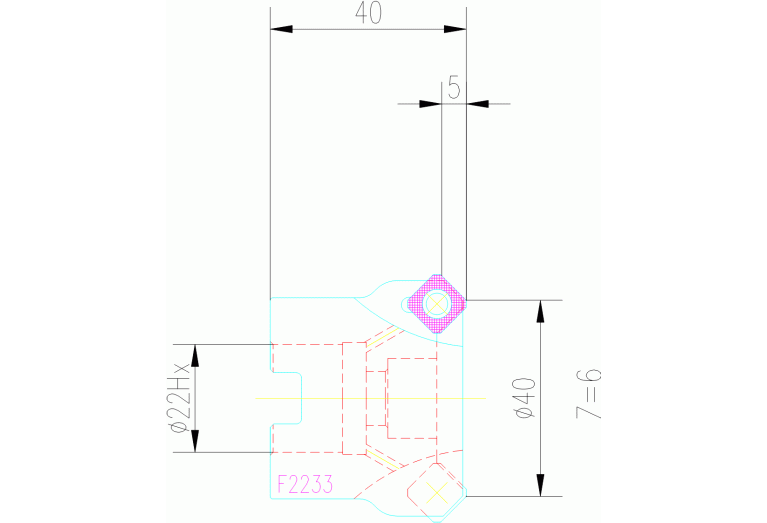

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2233.B.040.Z06.05

F2233.B.040.Z06.05

F2233.B.040.Z06.05 F2233.B.040.Z06.05 F2233.B.040.Z06.05 F2233.B.040.Z06.05

F2233.B.040.Z06.05

Walter
Артикул: 5021693
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
0.7 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
5 mm
CICT Cutting item count
6
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DAH Diameter access hole
13.5 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
50.465 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
41 mm
DIN
FDA01601210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Face milling cutters F2233
HAND Cutting direction
R - Right
ID Technical product number
5021693
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12G1600$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 ISO
FDA12G1600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01601210
Name Identifying order number
F2233.B.040.Z06.05
OAL Overall length
40 mm
RMPX Ramping angle maximum
9 Degree
RPMX Rotational speed maximum
31300 1/min
Working process
FPL - Face milling,FSE - Counter-sinking
WT Weight of item
0.31 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
