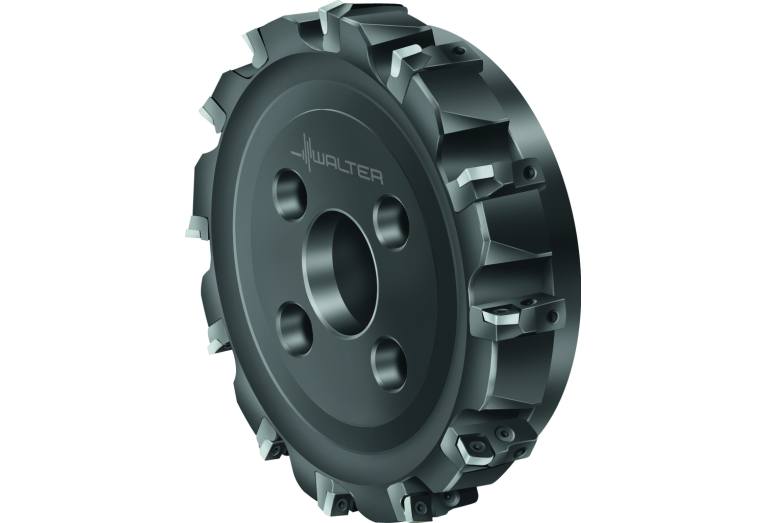

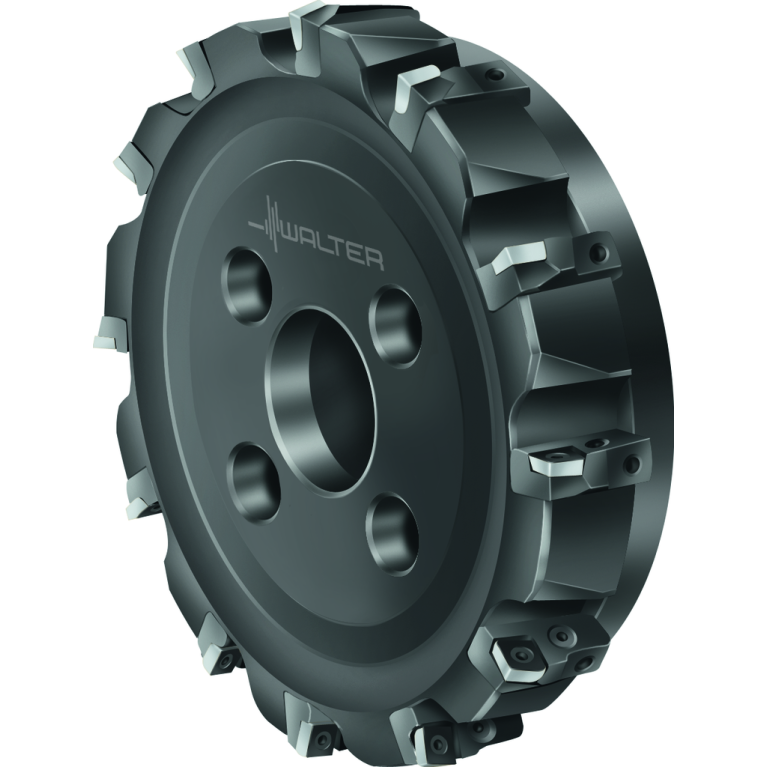

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter F2010.UB.102.Z07.02R750M

F2010.UB.102.Z07.02R750M

F2010.UB.102.Z07.02R750M F2010.UB.102.Z07.02R750M F2010.UB.102.Z07.02R750M F2010.UB.102.Z07.02R750M

F2010.UB.102.Z07.02R750M

Walter
Артикул: 5964430
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
AZ Plunge depth maximum
1.1 mm
BD Body diameter
98.095 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CDX Cutting depth maximum
2 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DAH Diameter access hole
26 mm
DC Cutting diameter
92.71 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
111.15 mm
Delivery state valid from
12/1/2023
DHUB Hub diameter
75.334 mm
DIN
FDA12501220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7
FamilyProducts
High-feed milling cutter F2010
HAND Cutting direction
R - Right
ID Technical product number
5964430
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA12S1250$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
21 Degree
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
FDA12S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA12501220
Name Identifying order number
F2010.UB.102.Z07.02R750M
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
0.1 Degree
RPMX Rotational speed maximum
5900 1/min
Working process
FPL - Face milling
WT Weight of item
2.6 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
