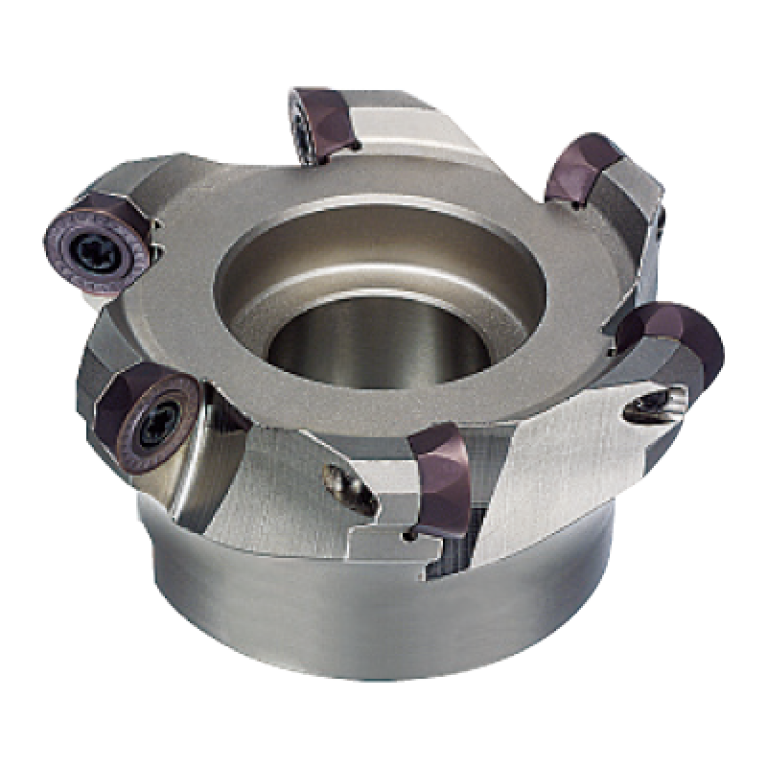

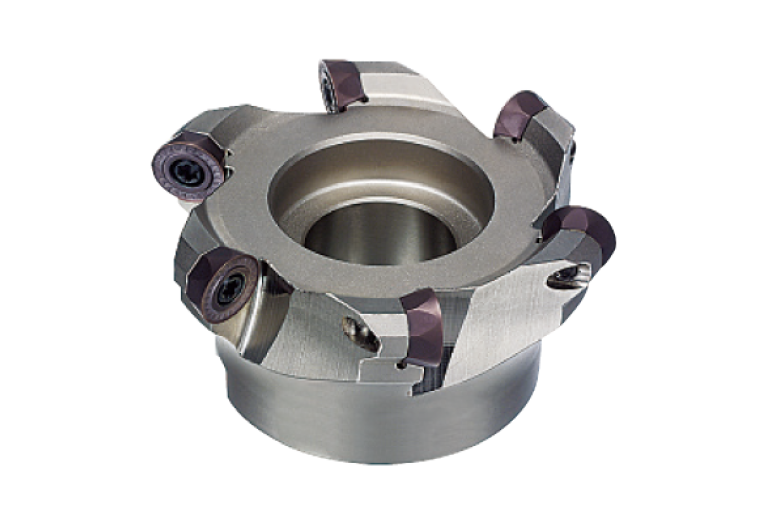

Главная Каталог продукции Toolunited 14 308-01 - Face milling cutter BRP8PR06304B

BRP8PR06304B

Артикул: BRP8PR06304B

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

CCONMS Connection count machine side

CDX Cutting depth maximum

8 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

46.7 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

63 mm

Delivery state valid from

4/1/2022

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

FACEMILL

GAMF Rake angle radial

5 Degree

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

Name Identifying order number

BRP8PR06304B

OAL Overall length

63 mm

Working process

FPL - Face milling

WT Weight of item

0.7 kg

ZEFP Peripheral effective cutting edge count
