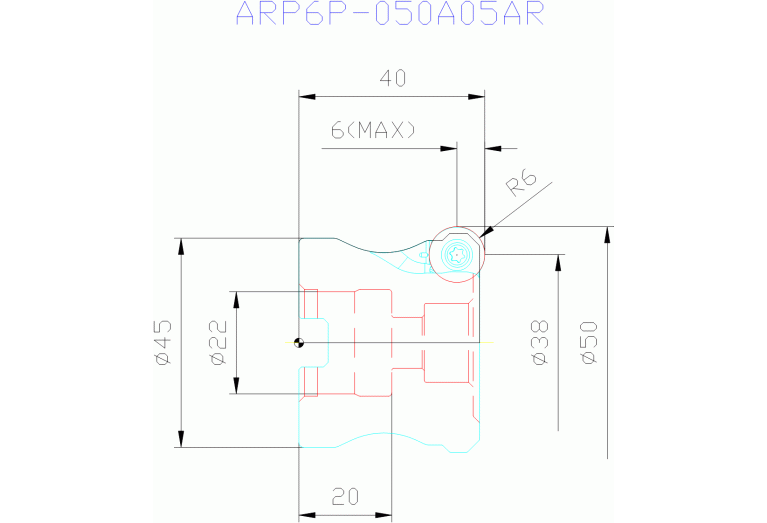

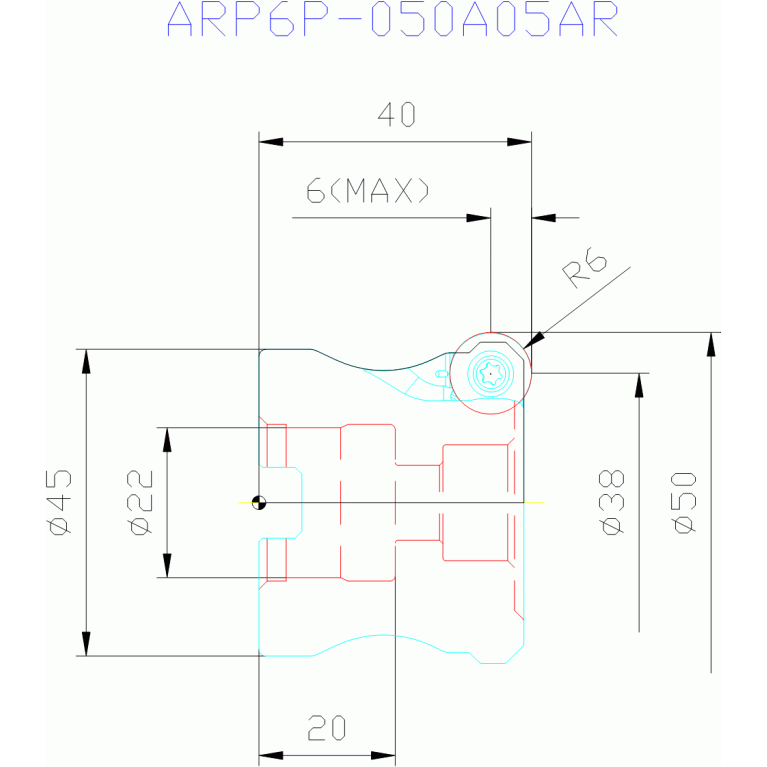

ARP6P-050A05AR

Артикул: 10527191

В наличии

В корзину

Описание

Характеристики

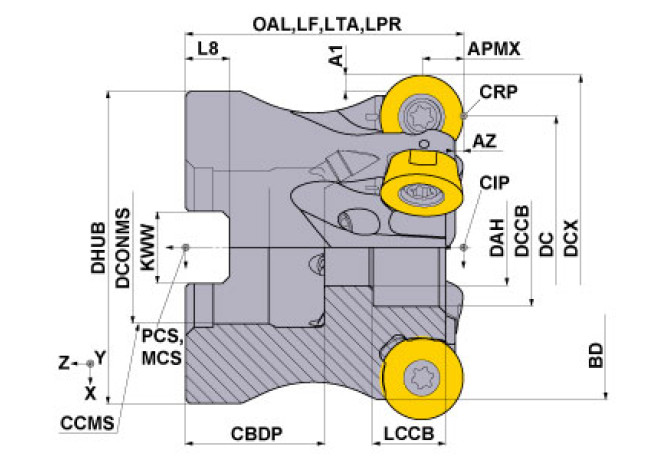

A2A Clearance angle major Pos. A

11 Degree

AZ Plunge depth maximum

1.7 mm

B3A Inscribed circle diameter Pos. A

12 mm

BD Body diameter

45 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.76 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

6 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

38 mm

DCCB Counterbore diameter connection bore

17 mm

DCX Cutting diameter maximum

50 mm

Delivery state valid from

4/1/2022

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

face mills

GAMF Rake angle radial

-6 Degree

GAMP Rake angle axial

4 Degree

HAND Cutting direction

R - Right

ID Technical product number

10527191

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

ARP6P-050A05AR

OAL Overall length

40 mm

RMPX Ramping angle maximum

2.9 Degree

Working process

No working processes available

WT Weight of item

0.26 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
